Integrals, derivatives and sums

Definite integrals, the derivative at a point, and summation, using natural templates.

5.1Find a definite integral#

Press ∫ to open the integral template. Type the function using ALPHAx) for x, press ▶ to move to the lower limit, type it, press ▶ again and type the upper limit. The integral is calculated numerically and shown exactly when it can be.

Example 5.1

The area under x² from 0 to 1

  1. Integral, x, squared.

    ∫ALPHAx)x²
  2. Right to the lower limit 0, right to the upper limit 1, equals.

    ▶0▶1=

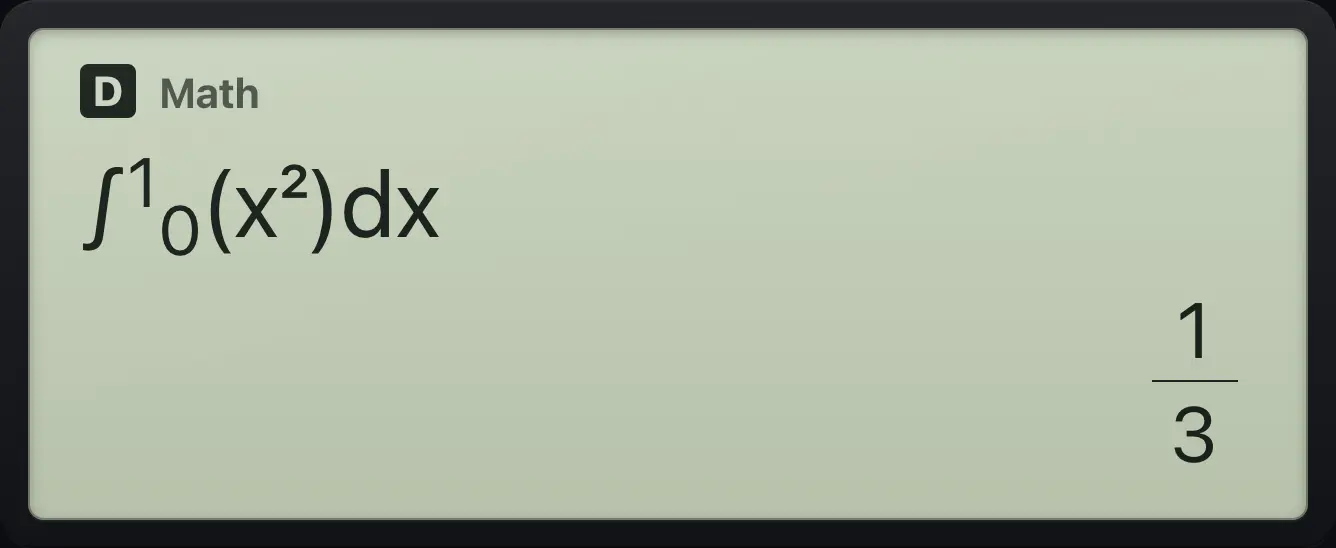

Result of the example "The area under x² from 0 to 1" The display shows: ∫(x²,0,1) / 1/3.
You should see1/3
Example 5.2

The area under 2x from 0 to 3

  1. Integral, 2x.

    ∫2ALPHAx)
  2. Limits 0 and 3.

    ▶0▶3=

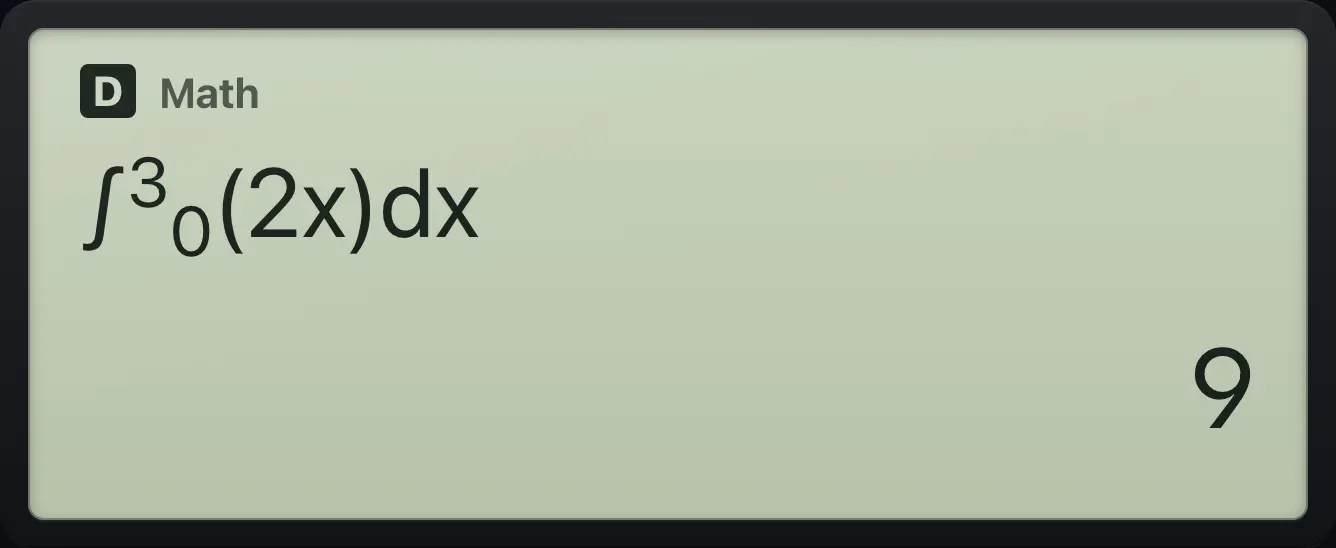

Result of the example "The area under 2x from 0 to 3" The display shows: ∫(2x,0,3) / 9.
You should see9
Example 5.3

An exact fraction from a root

  1. Integral of √x from 0 to 1.

    ∫√ALPHAx)▶▶0▶1=
Result of the example "An exact fraction from a root" The display shows: ∫(√x,0,1) / 2/3.
You should see2/3

An integral that has no finite value, such as 1/x² from 0 to 1, or tan x across π/2, gives Math ERROR. Steep but finite ones, such as x to the power −0.9 from 0 to 1 (which is 10), are worked out, but they take a moment, and so are those with such a pole inside the range (|x − 0.5| to the power −0.95 from 0 to 1). An integral that cannot be pinned down within a few seconds shows Time Out.

Example 5.4

An integral that does not exist

  1. Integral of 1/x² from 0 to 1.

    ∫1/ALPHAx)x²▶▶0▶1=
Result of the example "An integral that does not exist" The display shows: Math ERROR / [AC] :Cancel / [◀][▶]:Goto.
You should seeMath ERROR
∫01x2 dx=13\int_0^1 x^2\,dx=\frac13
The first example, written out

5.2Find the slope at a point#

SHIFTd/dx∫ opens the derivative template: type the function, press ▶ and type the x value where you want the slope.

Example 5.5

Slope of x² at x = 3

  1. SHIFT integral, x, squared.

    SHIFTd/dx∫ALPHAx)x²
  2. Right, type 3, equals.

    ▶3=

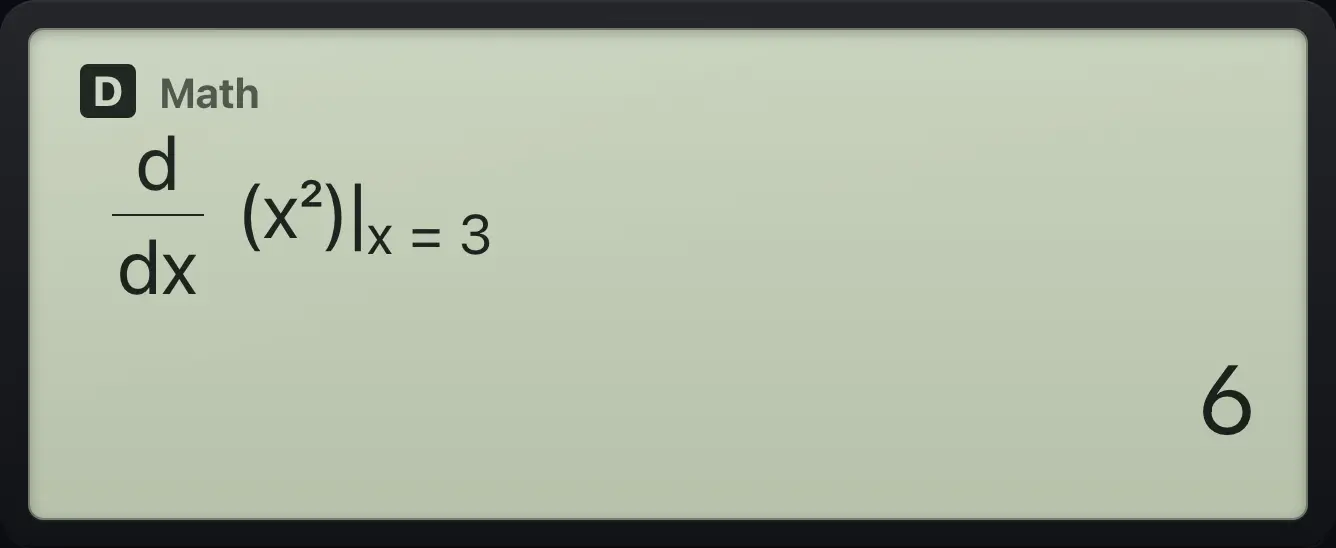

Result of the example "Slope of x² at x = 3" The display shows: d/dx(x²,3) / 6.
You should see6
ddxx2∣x=3=2x∣x=3=6\left.\frac{d}{dx}x^2\right|_{x=3}=2x\Big|_{x=3}=6
The slope at a point

5.3Add up a series with Σ#

SHIFTΣlog opens the summation template: the expression, the start value and the end value. Use ▶ to move between the boxes.

Example 5.6

Sum of x² from 1 to 5

  1. SHIFT log□, x, squared.

    SHIFTΣlogALPHAx)x²
  2. Start 1, end 5.

    ▶1▶5=

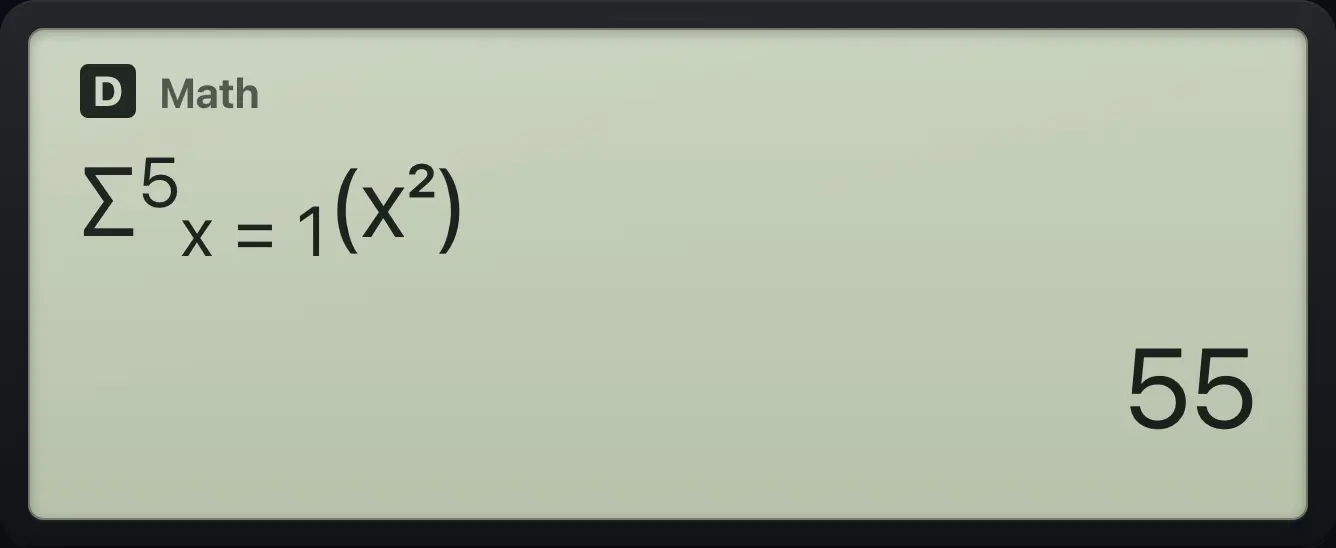

Result of the example "Sum of x² from 1 to 5" The display shows: Σ(x²,1,5) / 55.
You should see55
∑x=15x2=1+4+9+16+25=55\sum_{x=1}^{5}x^2=1+4+9+16+25=55
Summation
