RPN Advanced 42 manual · Chapter 6 of 18

Modes and display

Angle units, rectangular or polar complex form, complex or real results, and how many digits the display shows.

6.1The MODES menu#

Open MODES with shift +/−. Page 1 picks the angle unit and the complex display form; page 2 picks whether results may be complex. A filled square marks the current choice. Defaults: DEG, rectangular, real results.

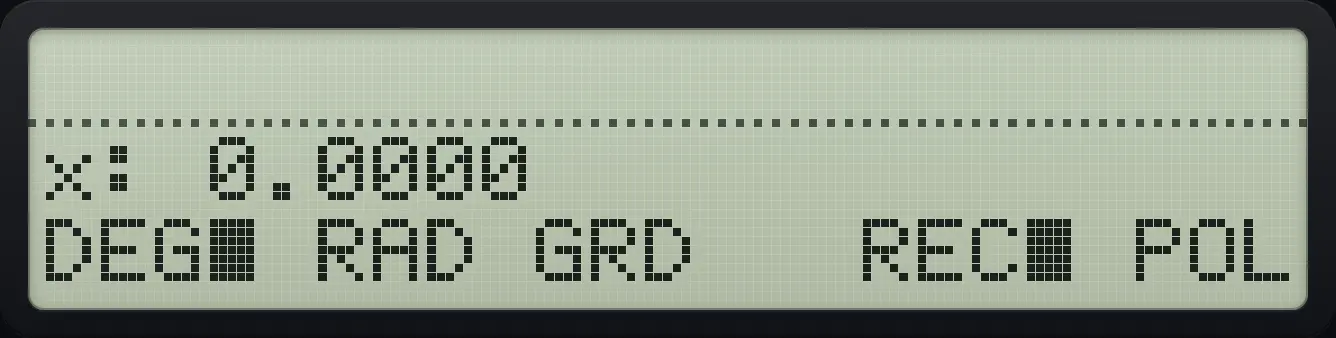

MODES page 1: DEG, RAD, GRD, then REC and POL. The display shows: x: 0.0000 / DEG■ RAD GRD REC■ POL. — MODES page 1: DEG, RAD, GRD, then REC and POL.

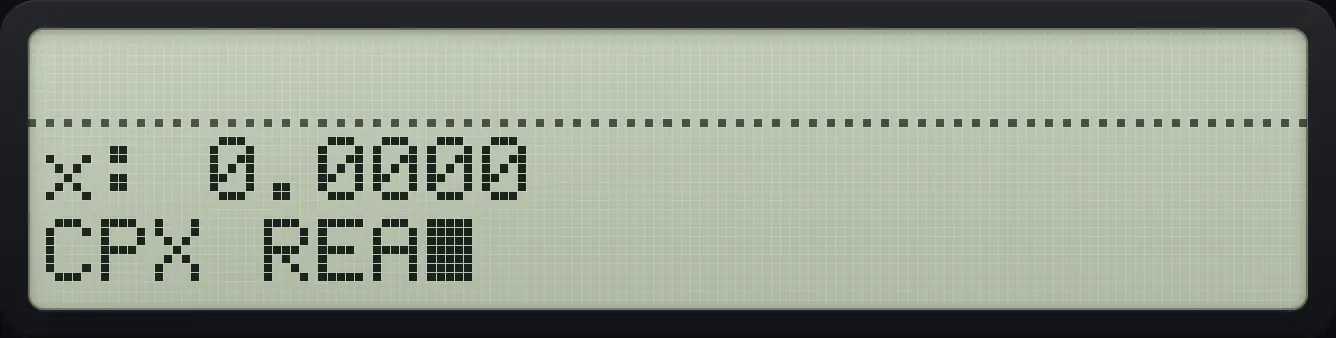

MODES page 2: CPX (complex results allowed) and RL (real results only). The display shows: x: 0.0000 / CPX REA■ . — MODES page 2: CPX (complex results allowed) and RL (real results only).

Item	Menu key	What it does
DEG	`Σ+`	Angles in degrees (360 per turn). The default.
RAD	`1/x`	Angles in radians ( $2\pi$ per turn).
GRD	`√x`	Angles in grads (400 per turn).
REC	`LN`	Complex numbers shown as x and y parts.
POL	`XEQ`	Complex numbers shown as radius and angle.
CPX (page 2)	`Σ+`	Square roots and logarithms of negative numbers give complex answers.
RL (page 2)	`1/x`	Those give an error instead. The default.

6.2Set the angle unit#

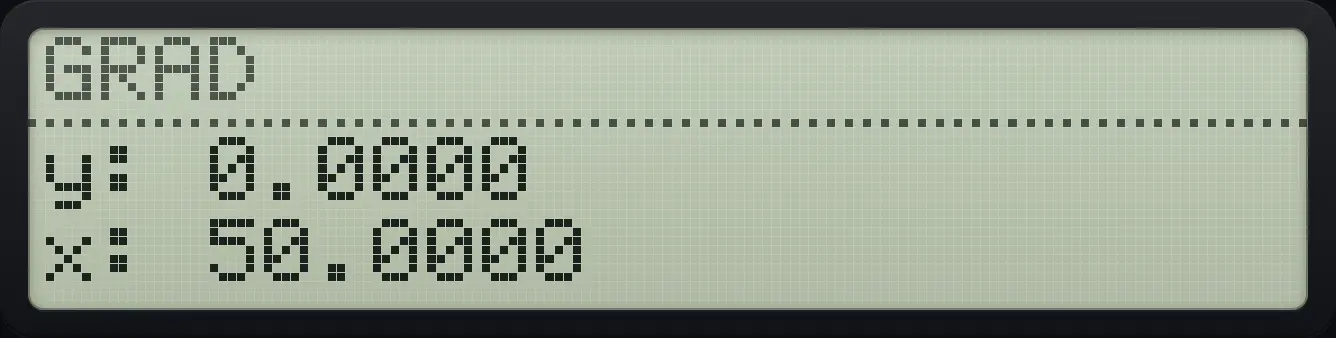

Example 6.1

Switch to grads and take an arctangent

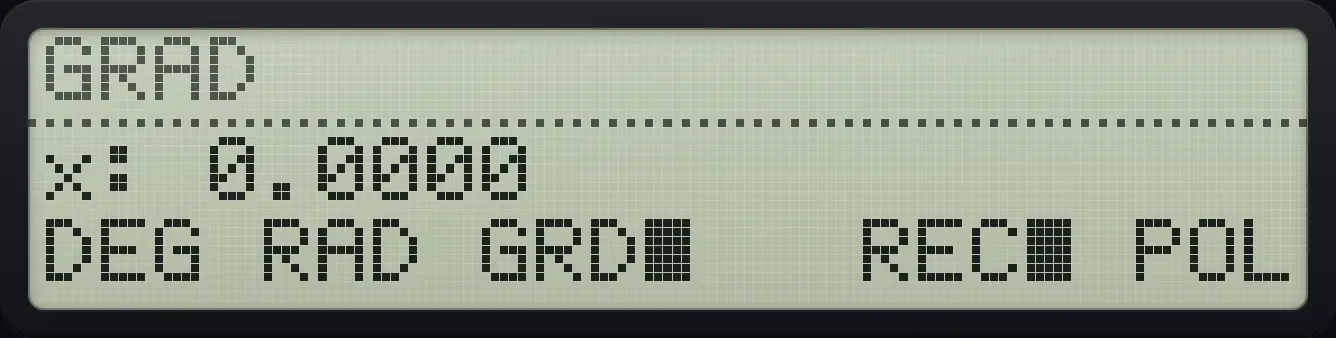

Open MODES and press GRD.
⇧MODES+/−√x
Close the menu, type 1 and press shift TAN.
EXIT1⇧ATANTAN

6.3Rectangular or polar form, complex or real results#

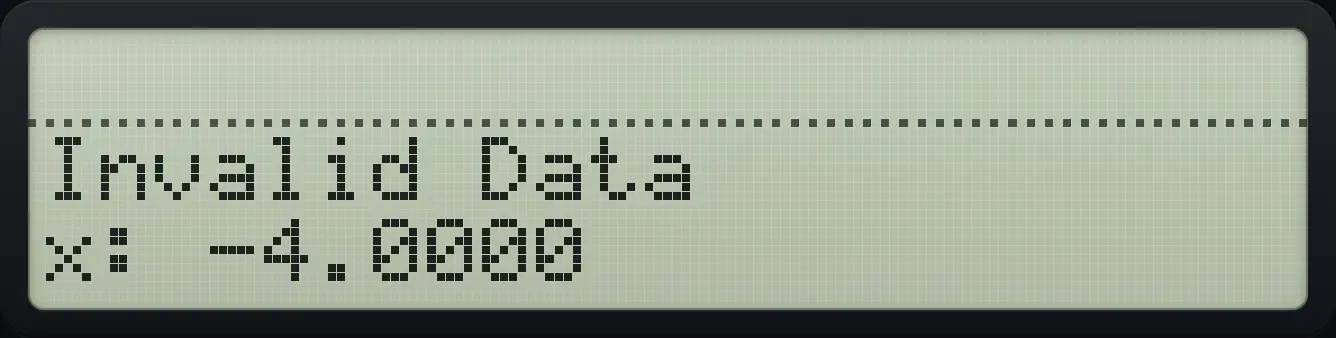

Example 6.2

Real results only: square root of a negative number

4, +/−, square root gives an error in the default mode.
4+/−√x

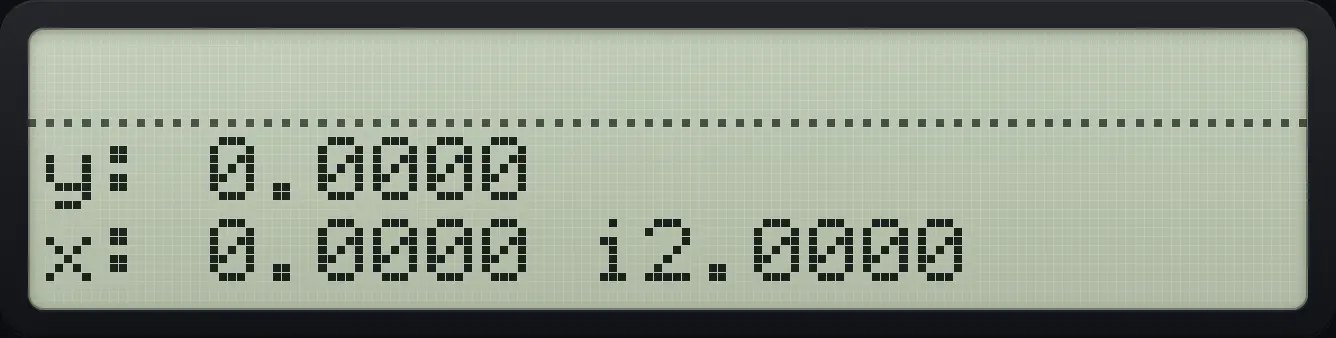

Example 6.3

Allow complex results

Open MODES, go to page 2 and choose CPX, then close the menu.
⇧MODES+/−▼Σ+EXIT
Now the square root of −4 is 2i.
4+/−√x

6.4Choose the display format#

Open DISP with shift E. FIX shows a fixed number of decimals, SCI scientific notation with a fixed number of digits, ENG engineering notation (exponent a multiple of 3), and ALL shows every digit that matters. The default is FIX 4. The calculation always keeps 12 digits; only the display changes.

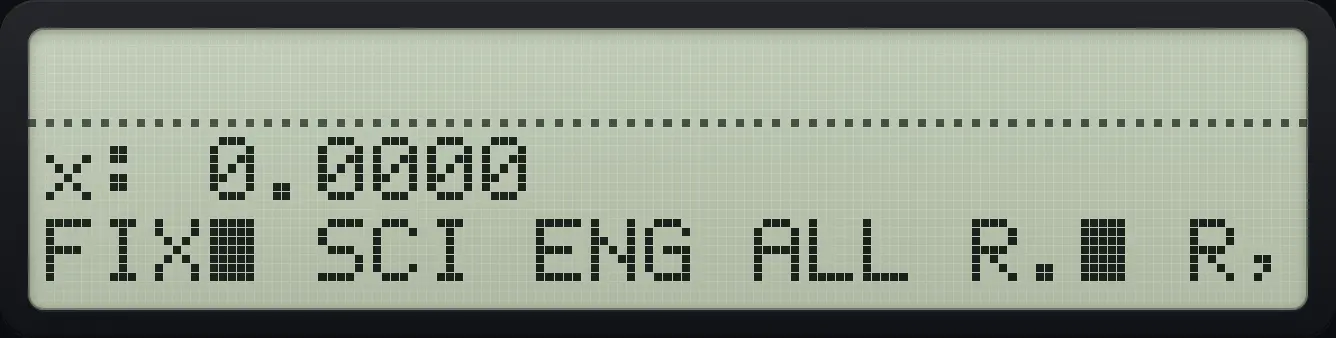

The DISP menu: FIX, SCI, ENG, ALL and the radix keys R. (point) and R, (comma). The marked one is active. The display shows: x: 0.0000 / FIX■ SCI ENG ALL R.■ R,. — The DISP menu: FIX, SCI, ENG, ALL and the radix keys R. (point) and R, (comma). The marked one is active.

After FIX, SCI or ENG, type the number of digits as two keys, for example 0 3, or one digit then ENTER.

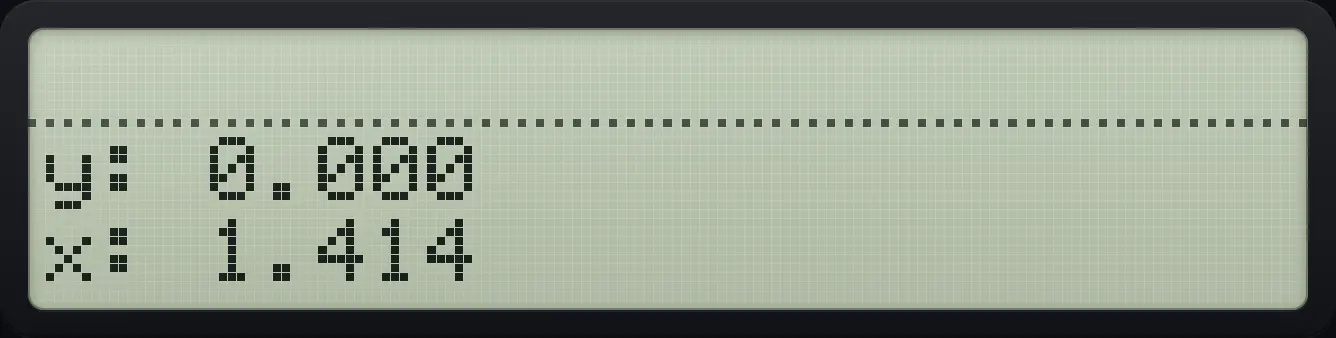

Example 6.4

Show 3 decimal places

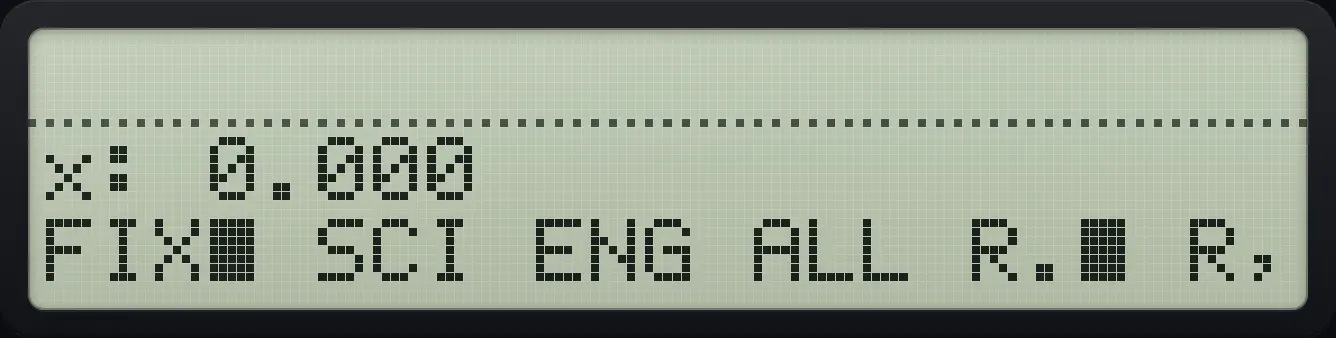

Open DISP, press FIX, and type 0 3.
⇧DISPEΣ+03
Close the menu and calculate the square root of 2.
EXIT2√x

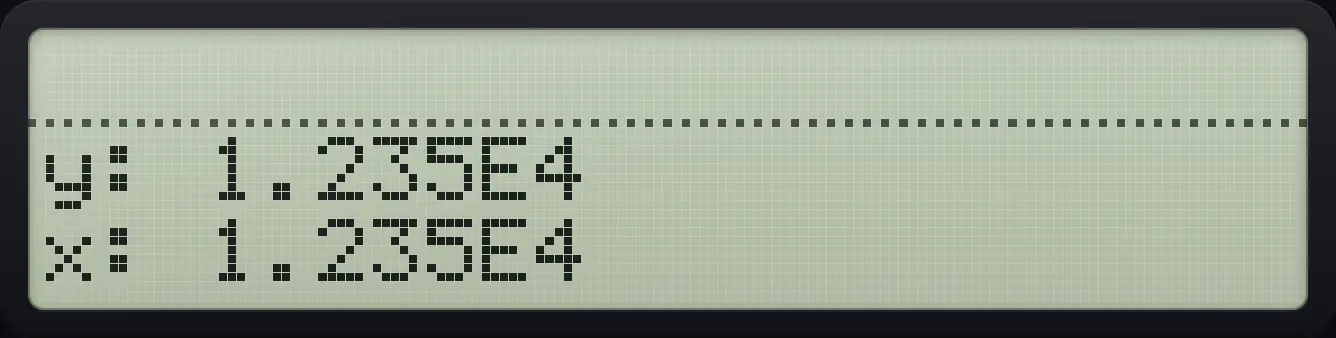

Example 6.5

Scientific notation with 3 digits

Open DISP, press SCI, type 0 3.
⇧DISPE1/x03EXIT
Enter 12345 and press ENTER to finish it.
12345ENTER

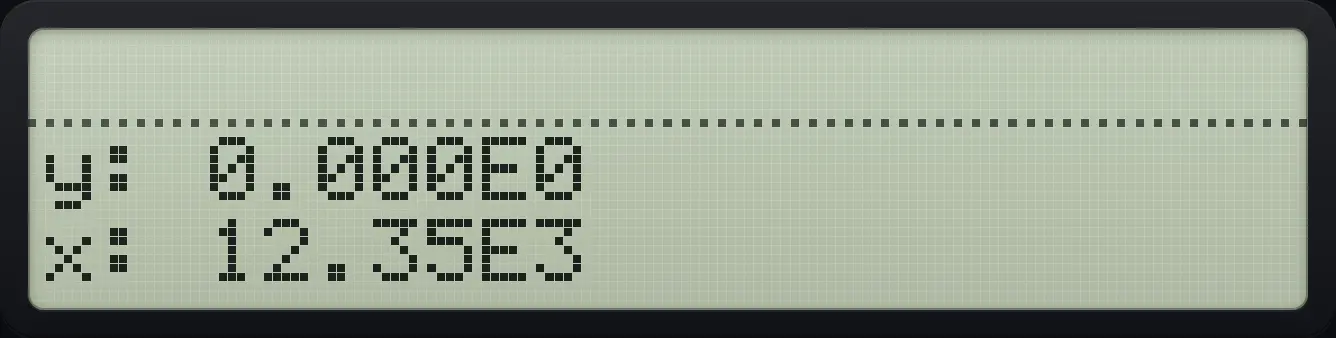

Example 6.6

Engineering notation

Open DISP, press ENG, type 0 3, close.
⇧DISPE√x03EXIT
Multiply 12345 by 1.
12345ENTER1×

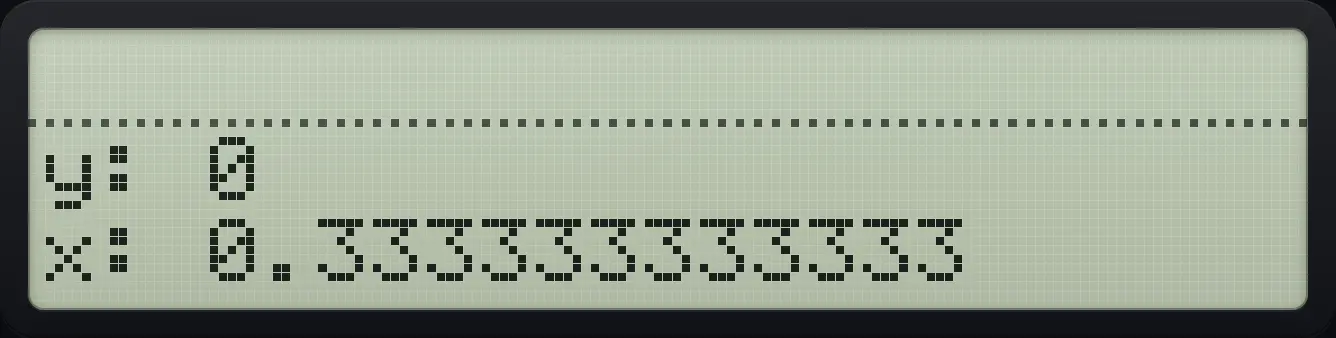

Example 6.7

Show every digit with ALL

Open DISP and press ALL (fourth key), close, then calculate 1/3.
⇧DISPELOGEXIT1ENTER3÷
