Matrices and vectors

Build matrices, add and multiply them, determinants, inverses, row reduction and vector products.

11.1Type a matrix#

Use the square-bracket keys (ctrl[( and ctrl])). A matrix is a bracket holding one bracket per row: type [[1,2][3,4]] to get [1234]\begin{bmatrix}1&2\\3&4\end{bmatrix}. A single bracketed row such as [1,2,3] is a vector.

[1234]\begin{bmatrix}1&2\\3&4\end{bmatrix}
The matrix [[1,2][3,4]].

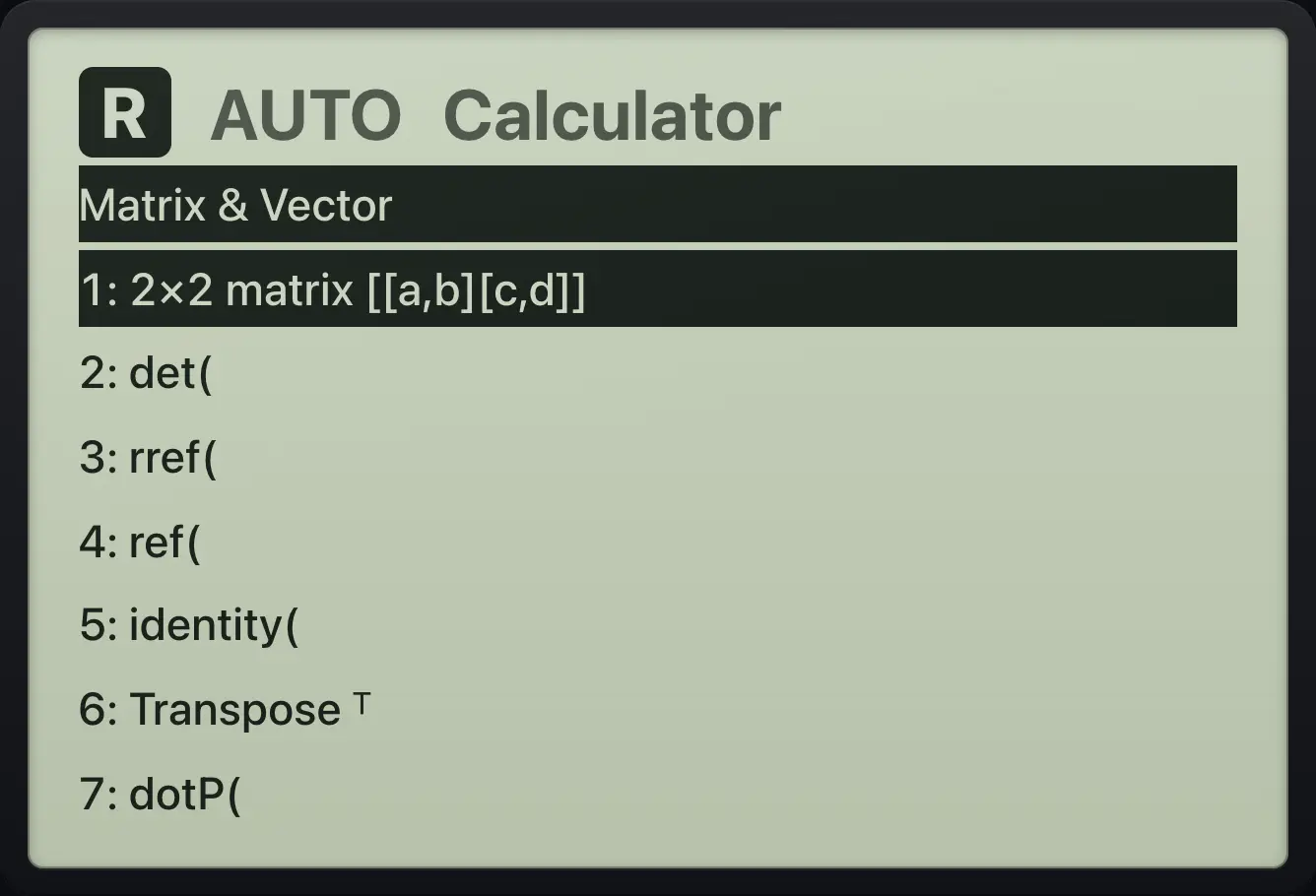

The Matrix & Vector menu. The display shows: Matrix & Vector / 1: 2×2 matrix [[a,b][c,d]] / 2: det( / 3: rref( / 4: ref( / 5: identity( / 6: Transpose ᵀ / 7: dotP(.
The Matrix & Vector menu.
Example 11.1

Add matrices

  1. Type [[1,2][3,4]]+[[1,1][1,1]].

    ctrl[(ctrl[(1,2ctrl])ctrl[(3,4ctrl])ctrl])+ctrl[(ctrl[(1,1ctrl])ctrl[(1,1ctrl])ctrl])enter

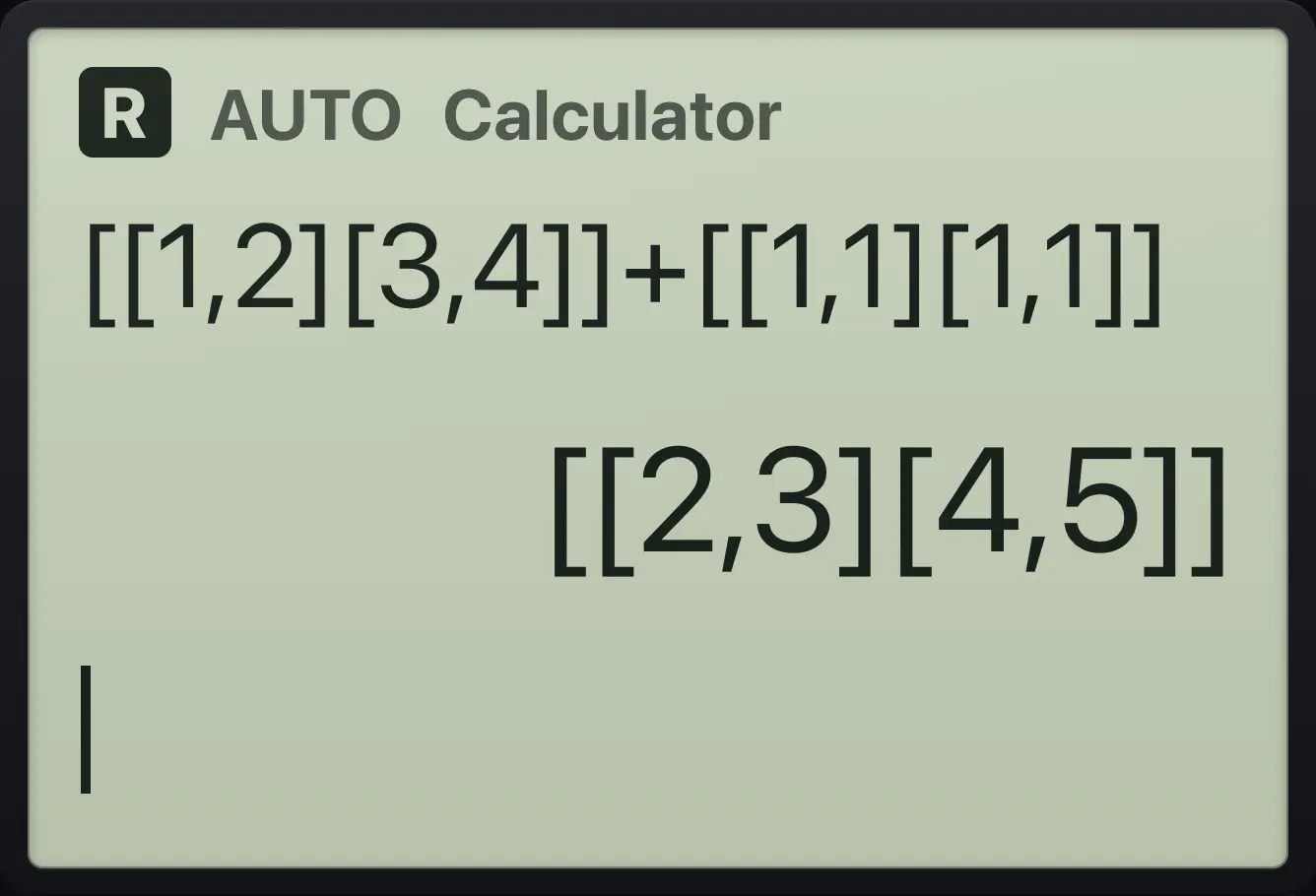

Result of the example "Add matrices" The display shows: [[1,2][3,4]]+[[1,1][1,1]] / [[2,3][4,5]].
You should see[[2,3][4,5]]
Example 11.2

Multiply by a number

  1. Type 2 × [[1,2][3,4]].

    2×ctrl[(ctrl[(1,2ctrl])ctrl[(3,4ctrl])ctrl])enter

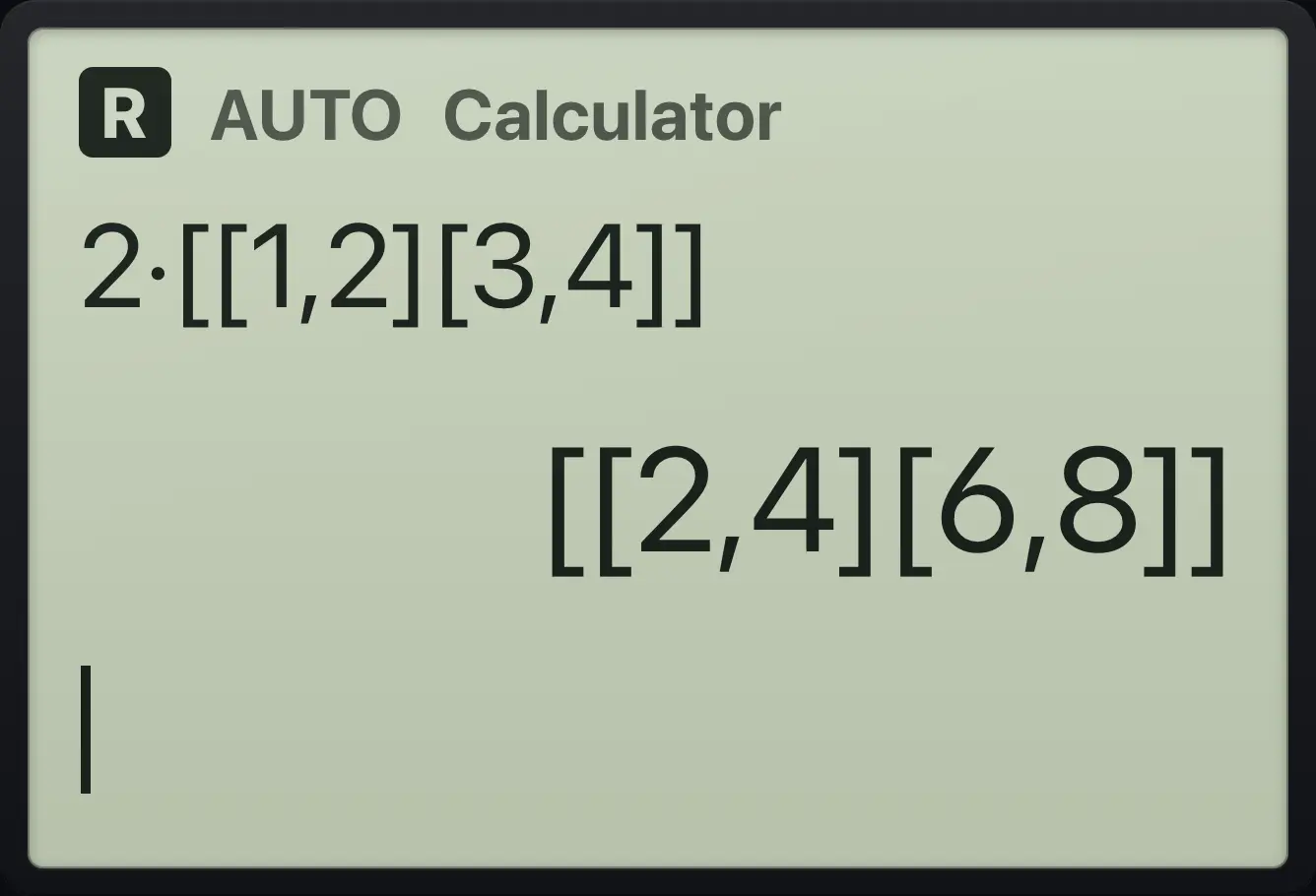

Result of the example "Multiply by a number" The display shows: 2·[[1,2][3,4]] / [[2,4][6,8]].
You should see[[2,4][6,8]]
Example 11.3

Multiply matrices

  1. Type [[1,2][3,4]]·[[0,1][1,0]].

    ctrl[(ctrl[(1,2ctrl])ctrl[(3,4ctrl])ctrl])×ctrl[(ctrl[(0,1ctrl])ctrl[(1,0ctrl])ctrl])enter

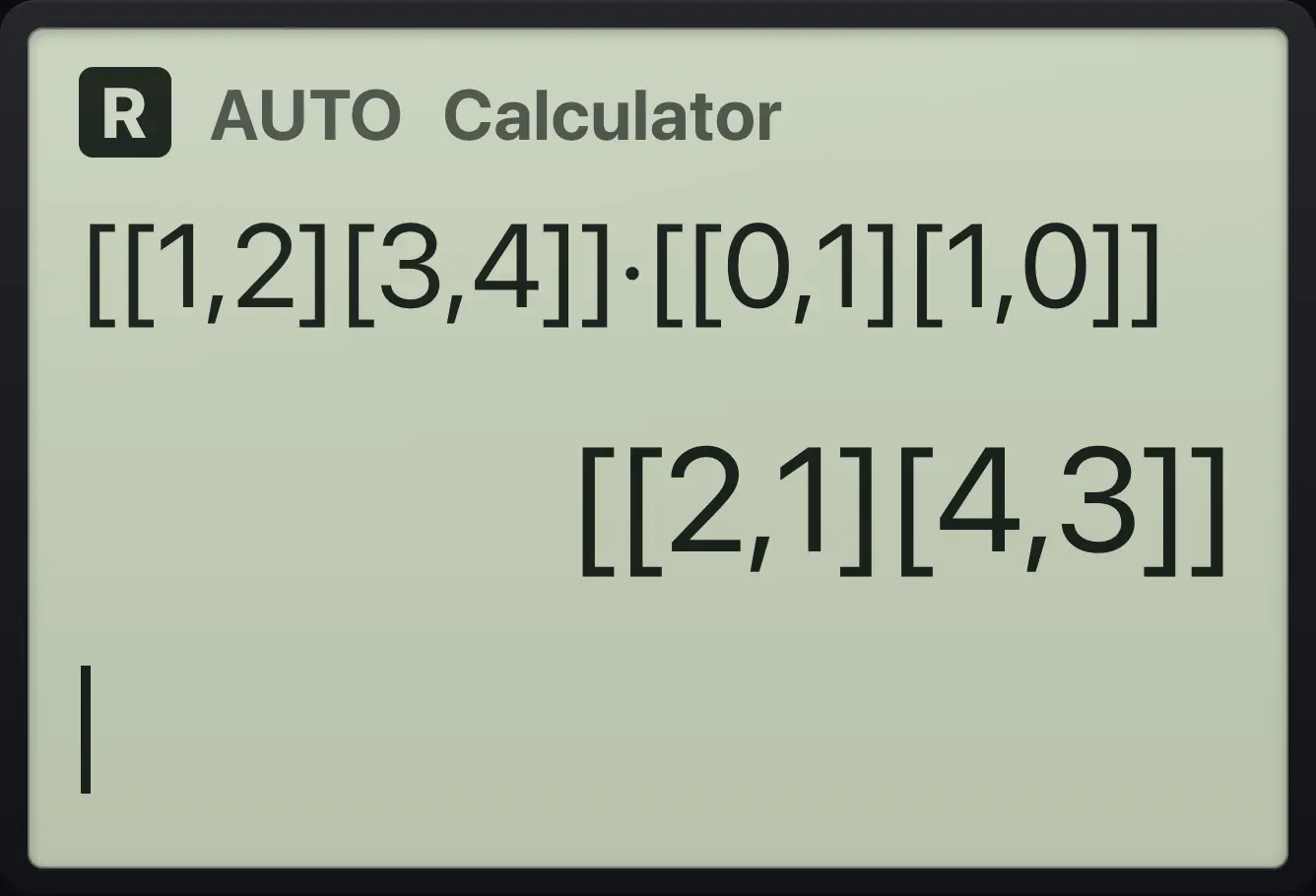

Result of the example "Multiply matrices" The display shows: [[1,2][3,4]]·[[0,1][1,0]] / [[2,1][4,3]].
You should see[[2,1][4,3]]
Example 11.4

Store a matrix

  1. Store m and multiply it by a column.

    m:=ctrl[(ctrl[(2,1ctrl])ctrl[(1,3ctrl])ctrl])enterm×ctrl[(ctrl[(5ctrl])ctrl[(7ctrl])ctrl])enter

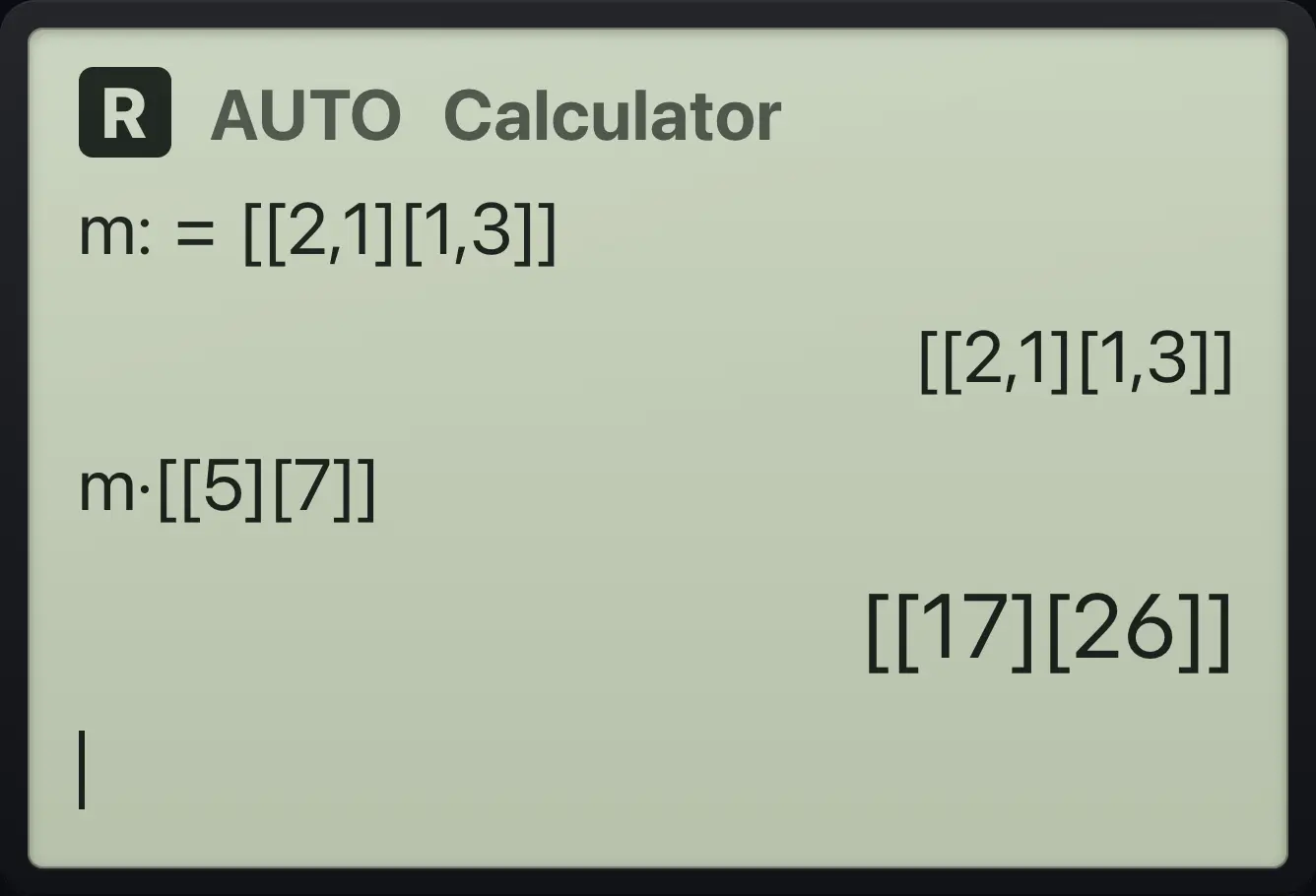

Result of the example "Store a matrix" The display shows: m:=[[2,1][1,3]] / [[2,1][1,3]] / m·[[5][7]] / [[17][26]].
You should see[[17][26]]

11.2Determinant, inverse and transpose#

det⁡[abcd]=ad−bc\det\begin{bmatrix}a&b\\c&d\end{bmatrix}=ad-bc
The 2×2 determinant.
Example 11.5

Determinant

  1. Type det([[1,2][3,4]]).

    det(ctrl[(ctrl[(1,2ctrl])ctrl[(3,4ctrl])ctrl]))enter

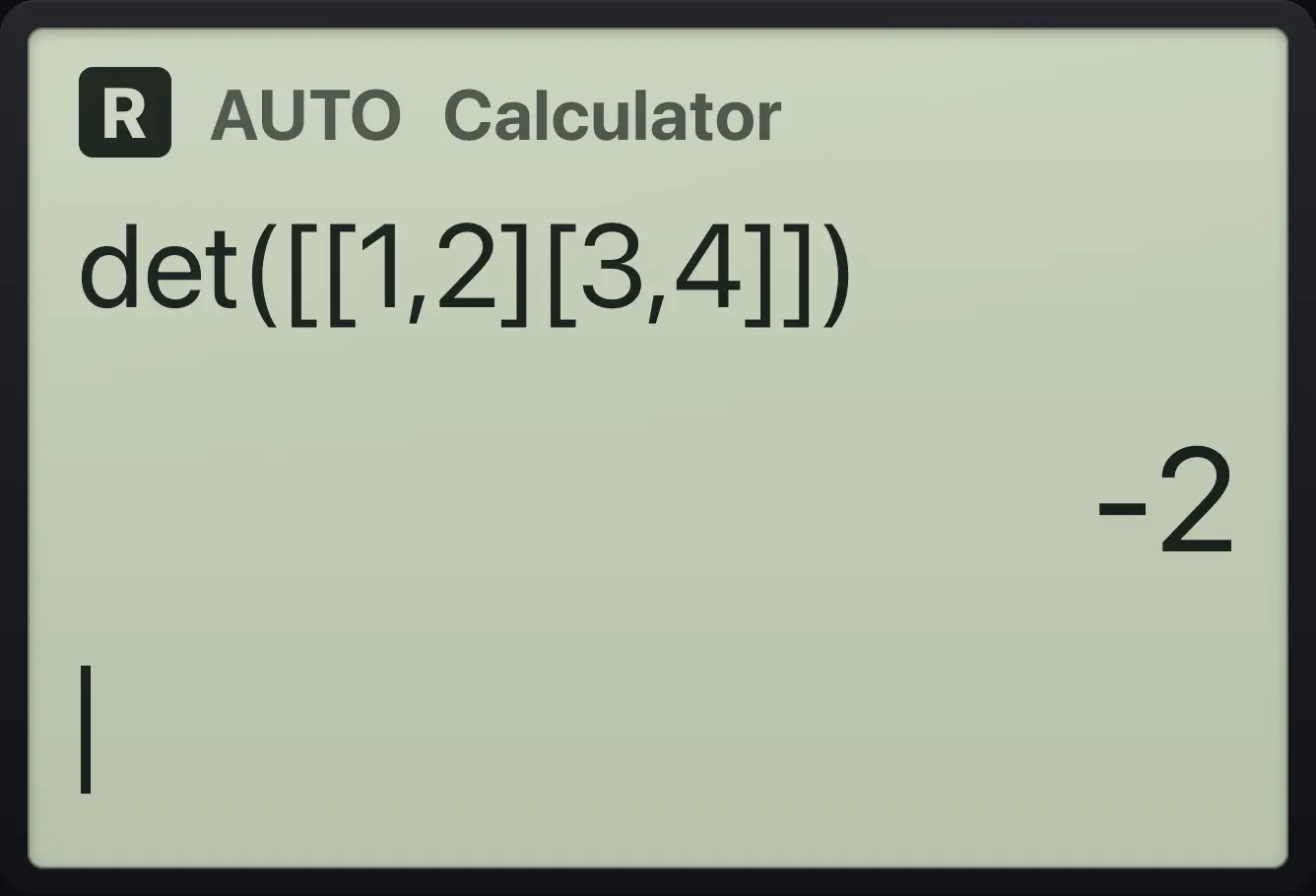

Result of the example "Determinant" The display shows: det([[1,2][3,4]]) / -2.
You should see-2
Example 11.6

Symbolic determinant

  1. Type det([[a,b][c,d]]).

    det(ctrl[(ctrl[(a,bctrl])ctrl[(c,dctrl])ctrl]))enter

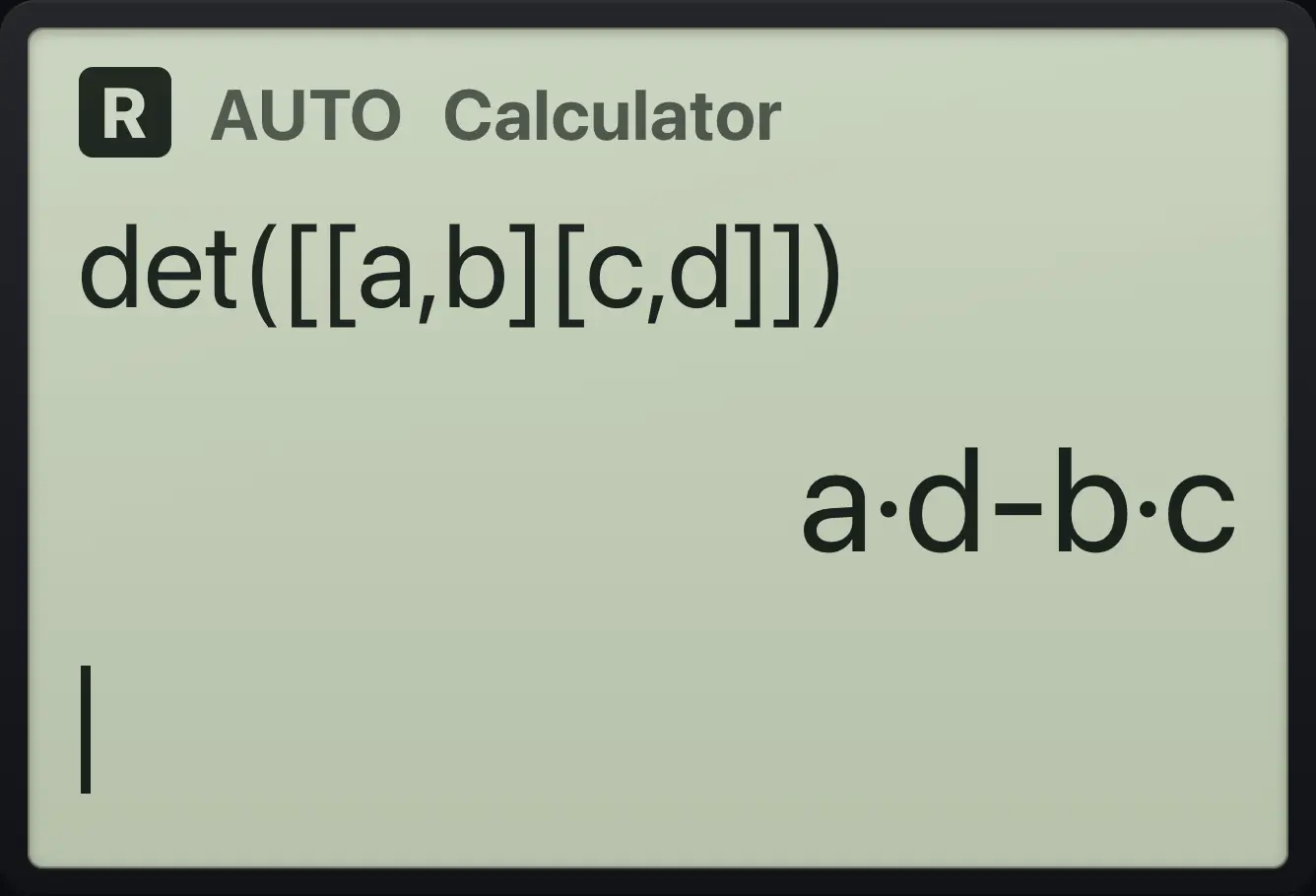

Result of the example "Symbolic determinant" The display shows: det([[a,b][c,d]]) / a·d-b·c.
You should seea·d-b·c
Example 11.7

Inverse

  1. Type [[1,2][3,4]] ^ (−1).

    ctrl[(ctrl[(1,2ctrl])ctrl[(3,4ctrl])ctrl])^((−)1)enter

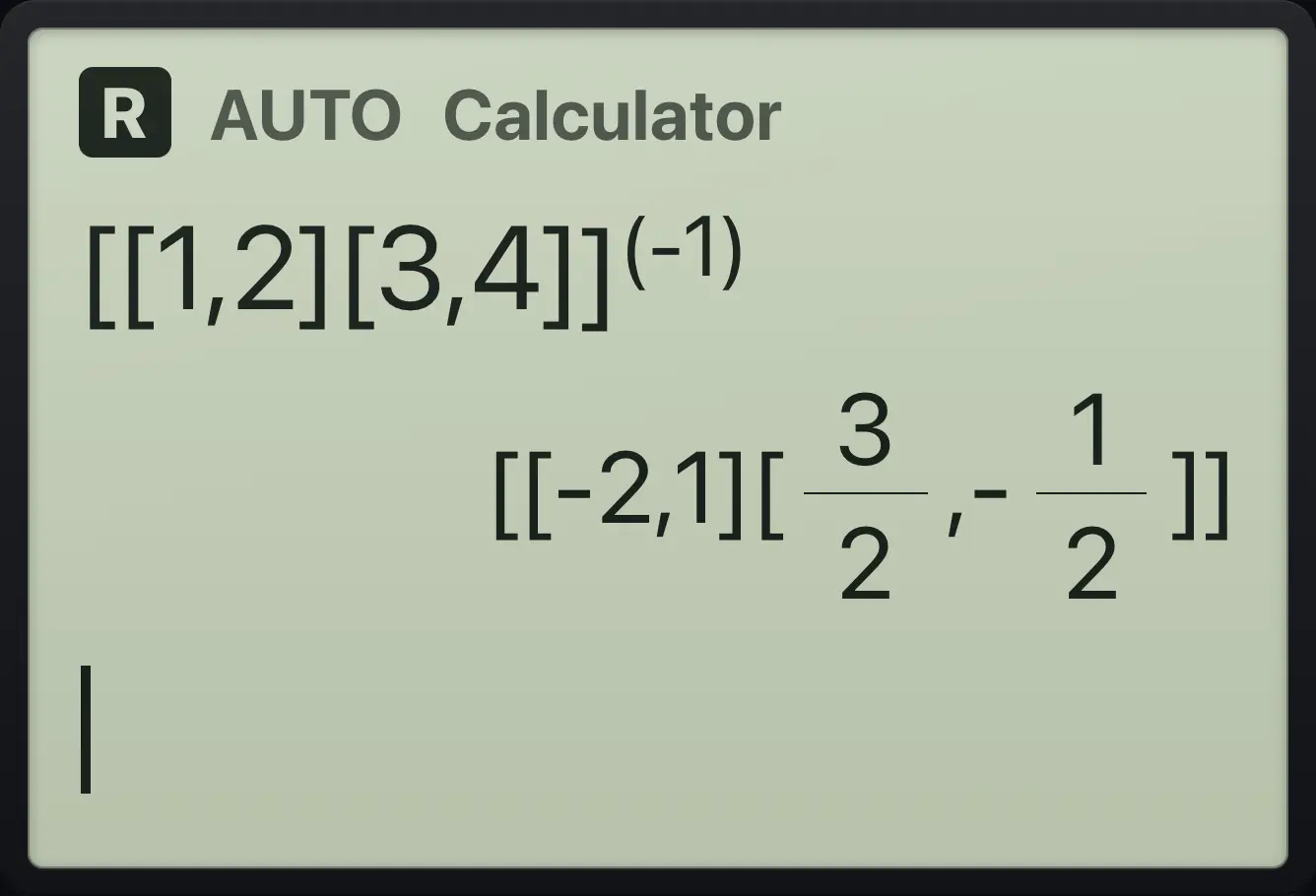

Result of the example "Inverse" The display shows: [[1,2][3,4]]^((-1)) / [[-2,1][3/2,-1/2]].
You should see[[-2,1][3/2,-1/2]]
Example 11.8

Inverse of a stored matrix

  1. Store m, then m^(−1).

    m:=ctrl[(ctrl[(2,1ctrl])ctrl[(1,3ctrl])ctrl])enterm^((−)1)enter

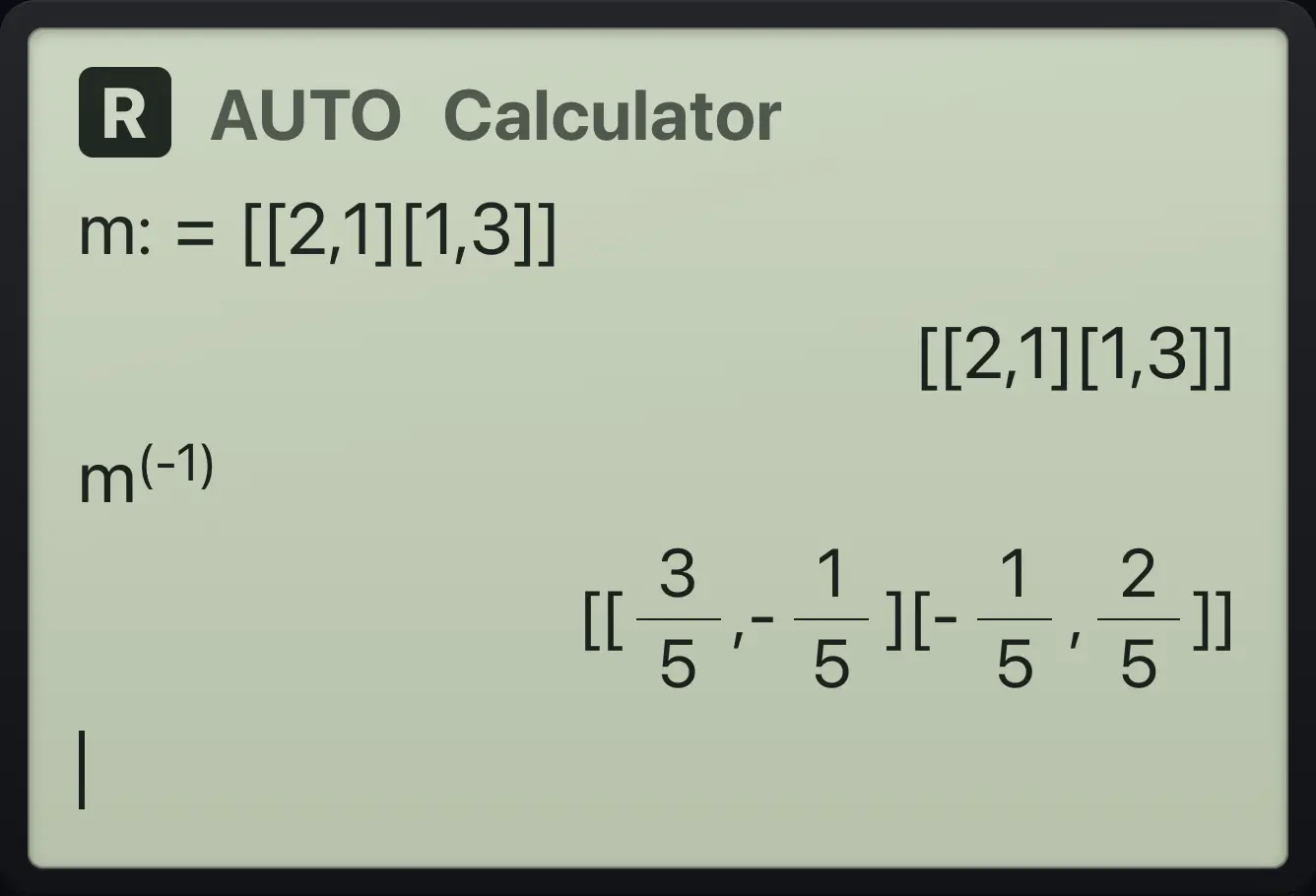

Result of the example "Inverse of a stored matrix" The display shows: m:=[[2,1][1,3]] / [[2,1][1,3]] / m^((-1)) / [[3/5,-1/5][-1/5,2/5]].
You should see[[3/5,-1/5][-1/5,2/5]]
Example 11.9

Transpose

  1. Type the matrix, then choose Transpose from the Matrix menu (menu, 7, 6).

    ctrl[(ctrl[(1,2ctrl])ctrl[(3,4ctrl])ctrl])menu76enter

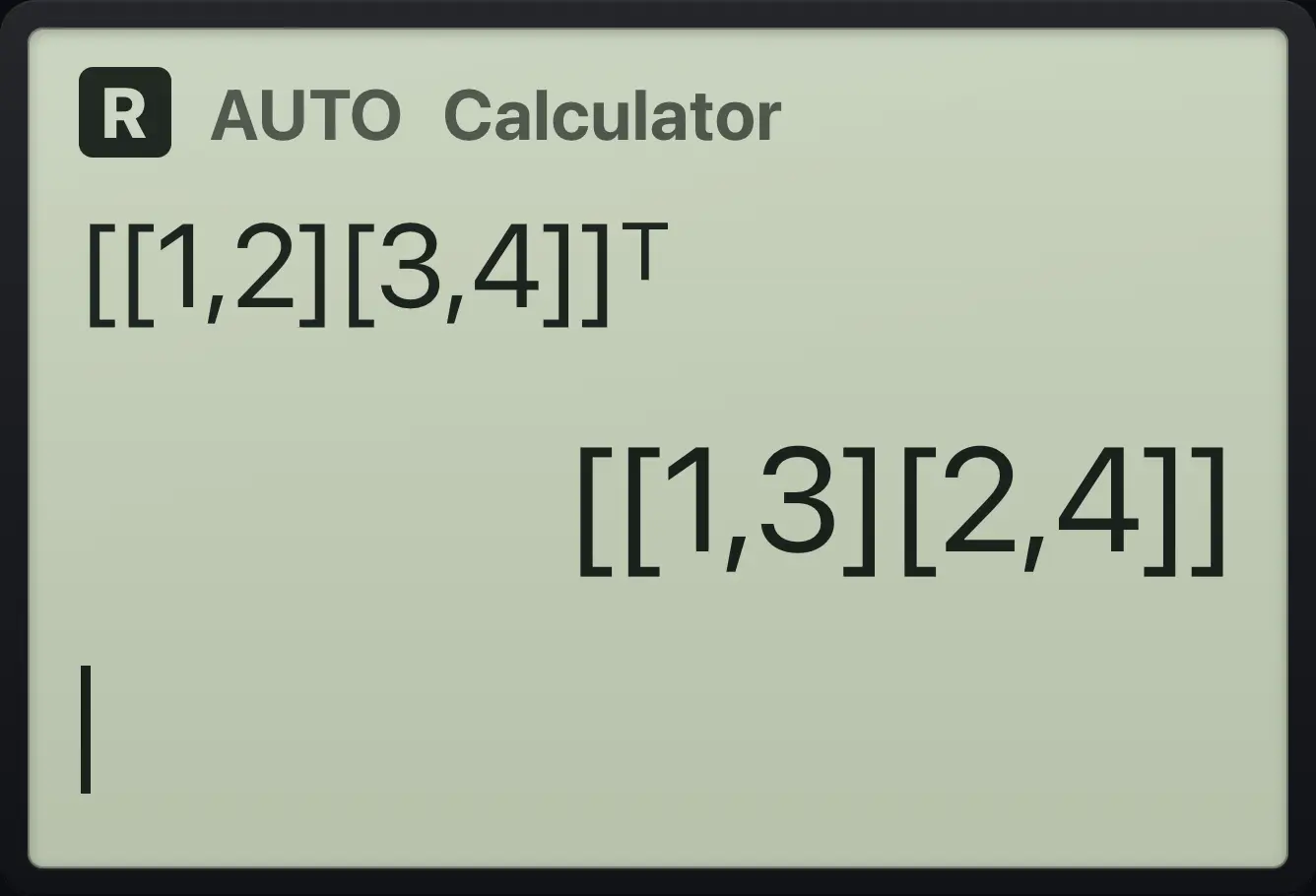

Result of the example "Transpose" The display shows: [[1,2][3,4]]ᵀ / [[1,3][2,4]].
You should see[[1,3][2,4]]
Example 11.10

Identity matrix

  1. Type identity(3).

    identity(3)enter

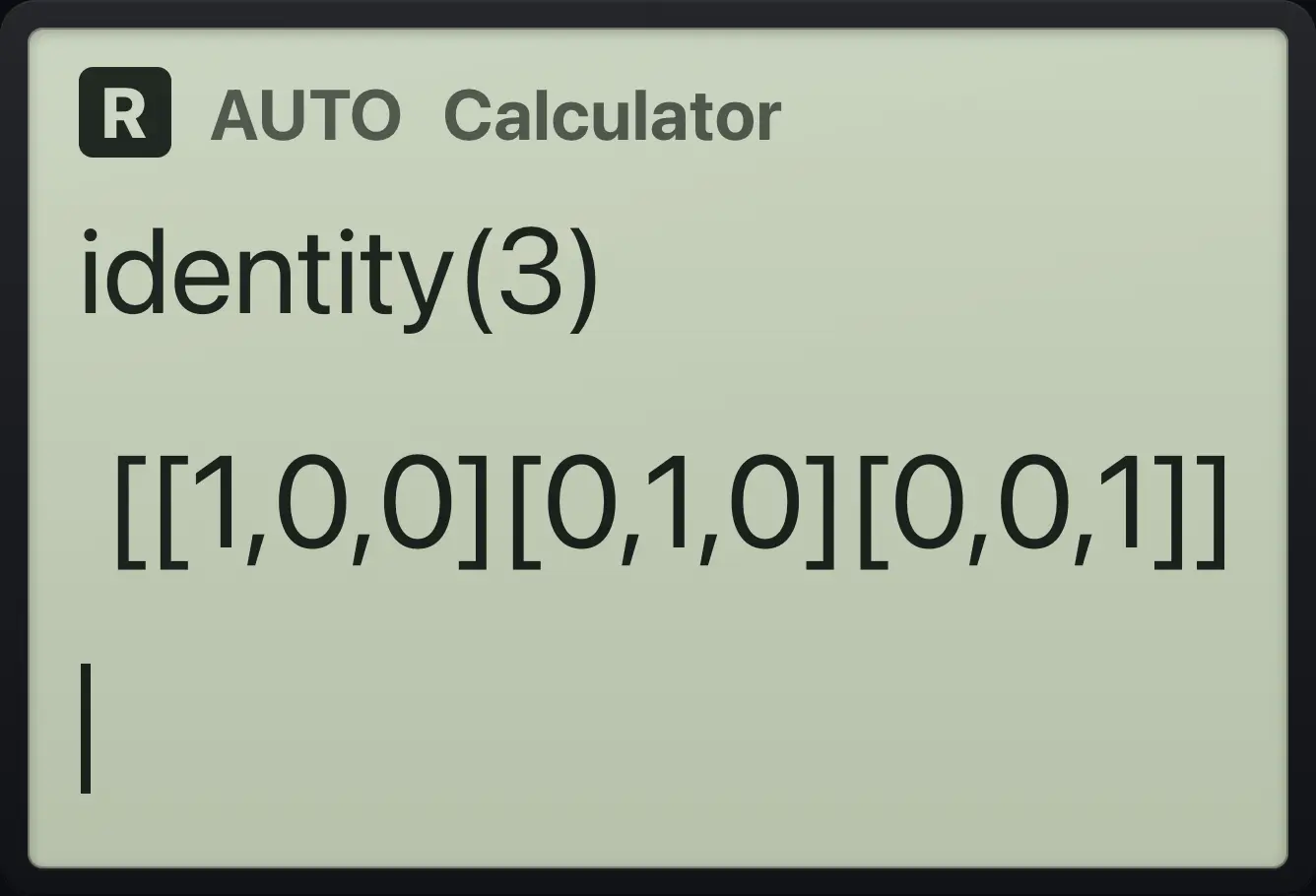

Result of the example "Identity matrix" The display shows: identity(3) / [[1,0,0][0,1,0][0,0,1]].
You should see[[1,0,0][0,1,0][0,0,1]]

11.3Row reduce and solve a linear system#

rref( gives the reduced row echelon form; ref( gives the row echelon form. To solve a system, write its augmented matrix and use rref.

Example 11.11

Solve 2x+y=5, x−y=1 with rref

  1. Type rref([[2,1,5][1,−1,1]]). The last column holds x=2, y=1.

    rref(ctrl[(ctrl[(2,1,5ctrl])ctrl[(1,(−)1,1ctrl])ctrl]))enter

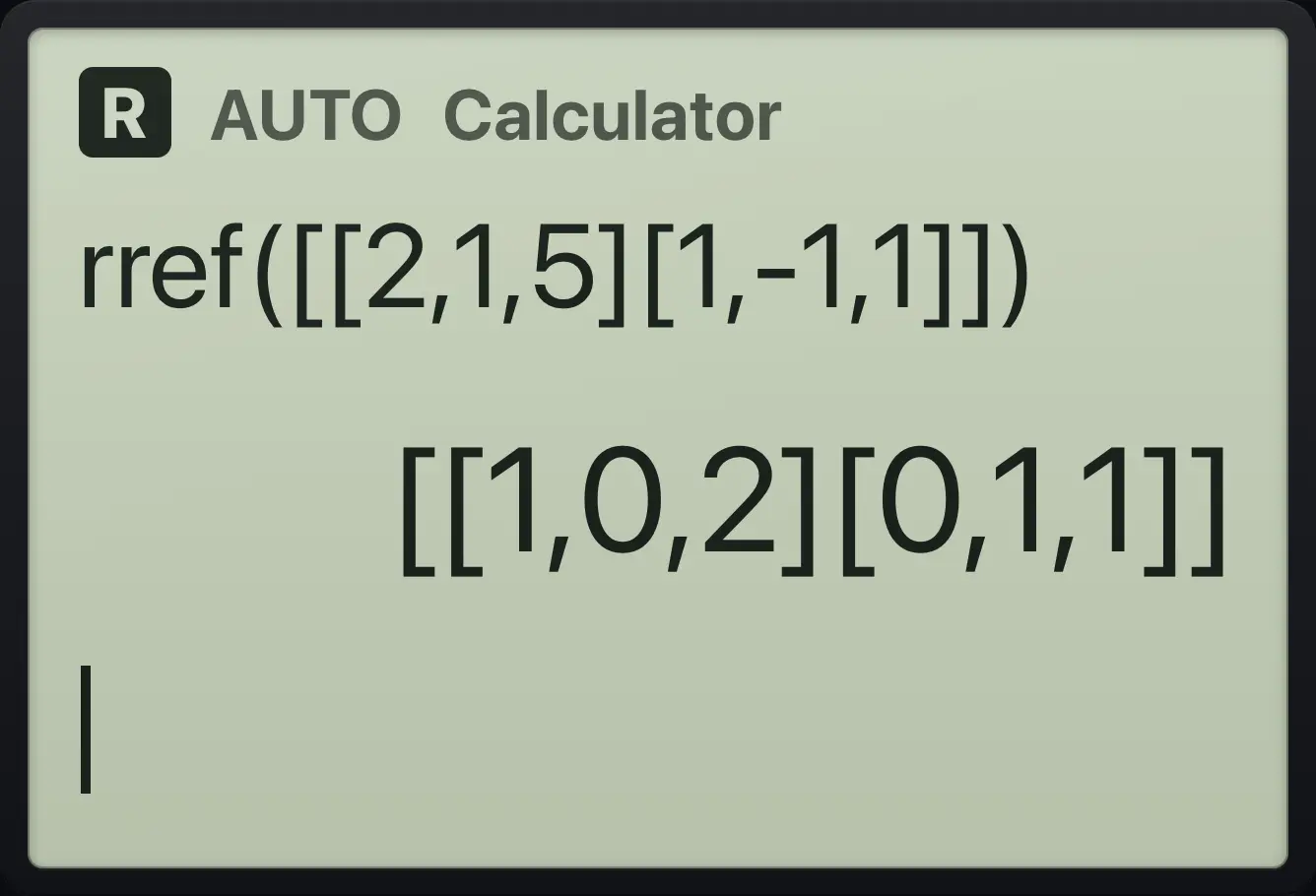

Result of the example "Solve 2x+y=5, x−y=1 with rref" The display shows: rref([[2,1,5][1,-1,1]]) / [[1,0,2][0,1,1]].
You should see[[1,0,2][0,1,1]]
Example 11.12

Reduced row echelon form

  1. Type rref([[1,2,3][4,5,6]]).

    rref(ctrl[(ctrl[(1,2,3ctrl])ctrl[(4,5,6ctrl])ctrl]))enter

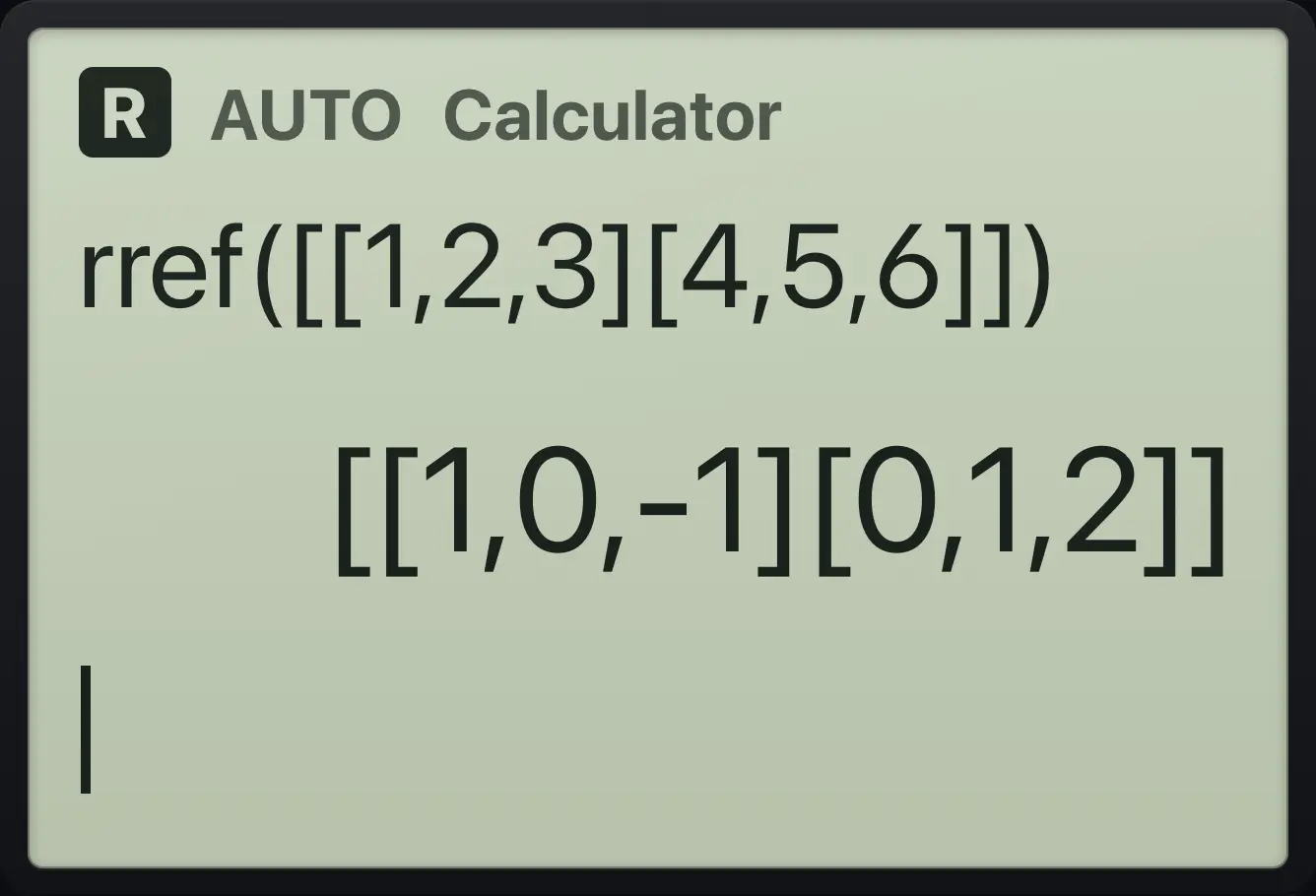

Result of the example "Reduced row echelon form" The display shows: rref([[1,2,3][4,5,6]]) / [[1,0,-1][0,1,2]].
You should see[[1,0,-1][0,1,2]]
Example 11.13

Row echelon form

  1. Type ref([[1,2,3][4,5,6]]).

    ref(ctrl[(ctrl[(1,2,3ctrl])ctrl[(4,5,6ctrl])ctrl]))enter

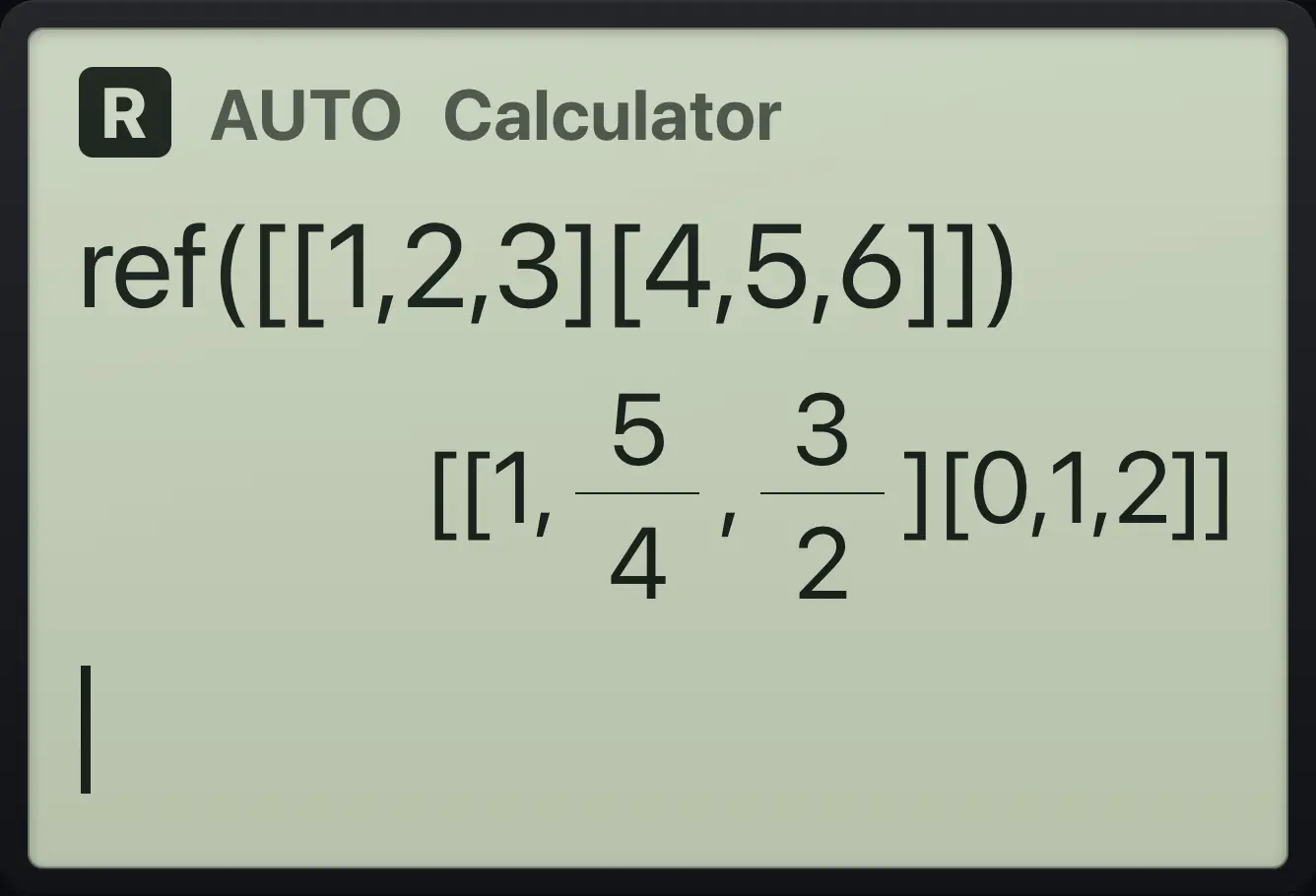

Result of the example "Row echelon form" The display shows: ref([[1,2,3][4,5,6]]) / [[1,5/4,3/2][0,1,2]].
You should see[[1,5/4,3/2][0,1,2]]
Example 11.14

Join matrices side by side

  1. Type augment([[1,2][3,4]],[[5][6]]).

    augment(ctrl[(ctrl[(1,2ctrl])ctrl[(3,4ctrl])ctrl]),ctrl[(ctrl[(5ctrl])ctrl[(6ctrl])ctrl]))enter

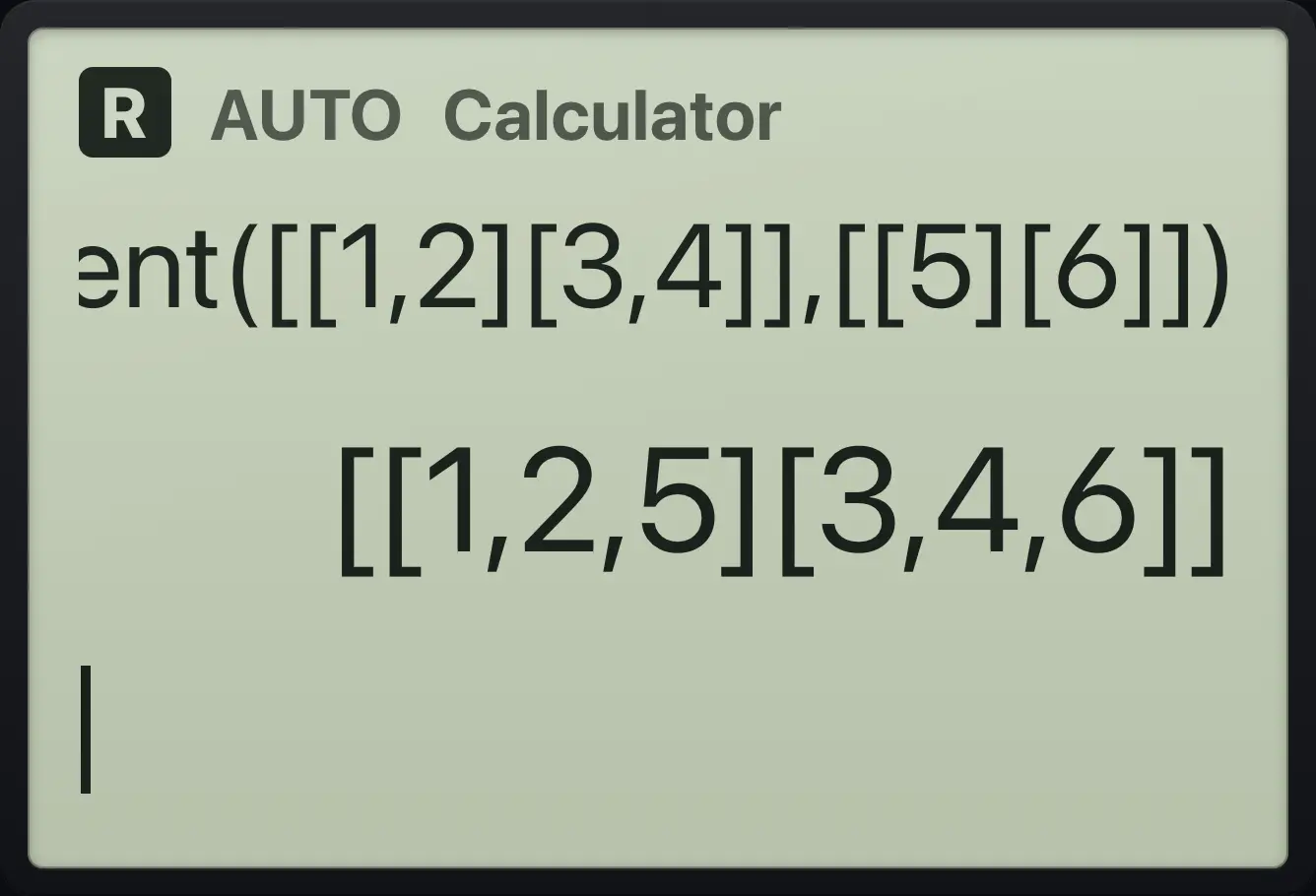

Result of the example "Join matrices side by side" The display shows: augment([[1,2][3,4]],[[5][6]]) / [[1,2,5][3,4,6]].
You should see[[1,2,5][3,4,6]]

11.4Dot product, cross product and size#

a⃗⋅b⃗=a1b1+a2b2+a3b3,∥v⃗∥=v12+v22+⋯\vec a\cdot\vec b=a_1b_1+a_2b_2+a_3b_3,\qquad \lVert\vec v\rVert=\sqrt{v_1^2+v_2^2+\cdots}
Dot product and norm.
Example 11.15

Dot product

  1. Type dotP([1,2,3],[4,5,6]).

    dotp(ctrl[(1,2,3ctrl]),ctrl[(4,5,6ctrl]))enter

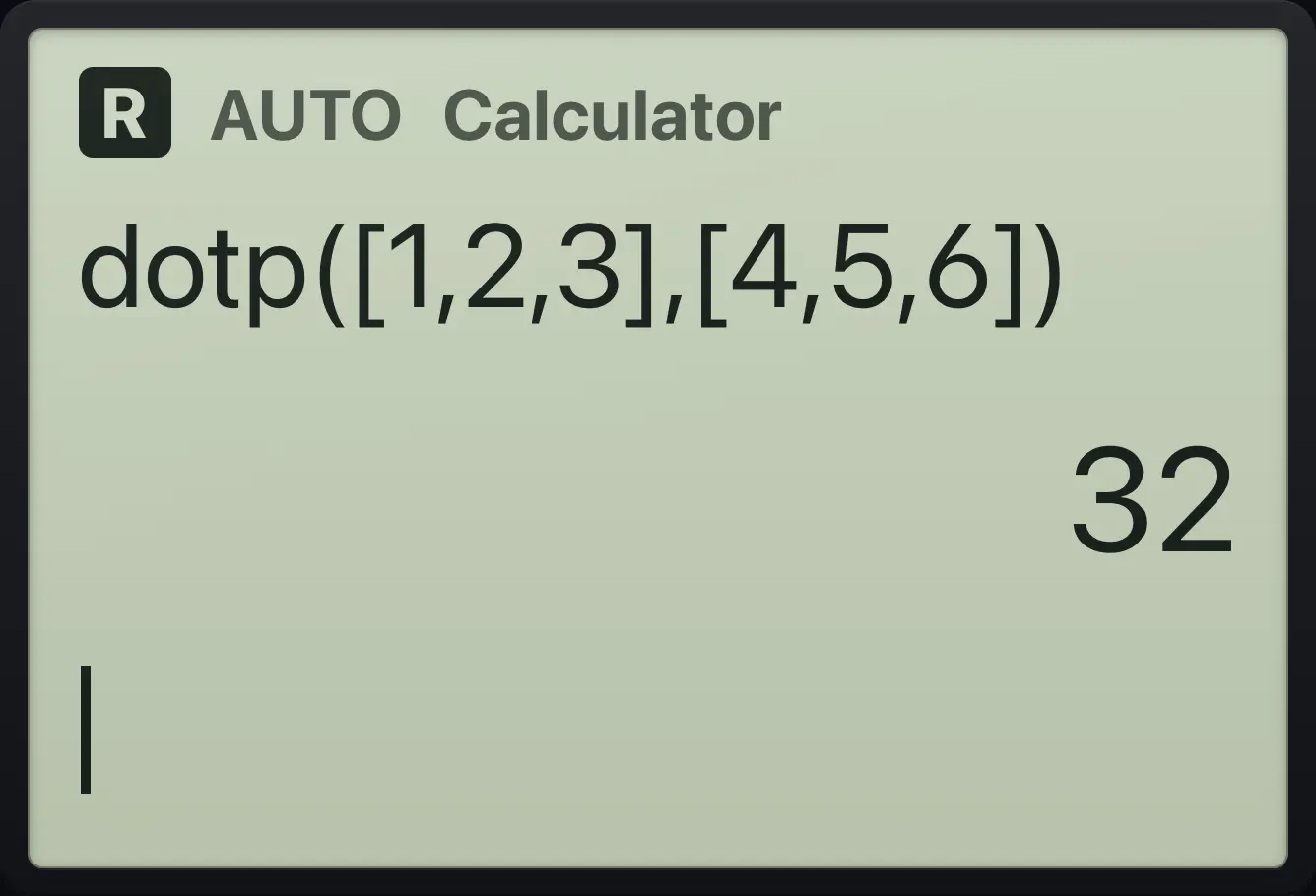

Result of the example "Dot product" The display shows: dotp([1,2,3],[4,5,6]) / 32.
You should see32
Example 11.16

Cross product

  1. Type crossP([1,2,3],[4,5,6]).

    crossp(ctrl[(1,2,3ctrl]),ctrl[(4,5,6ctrl]))enter

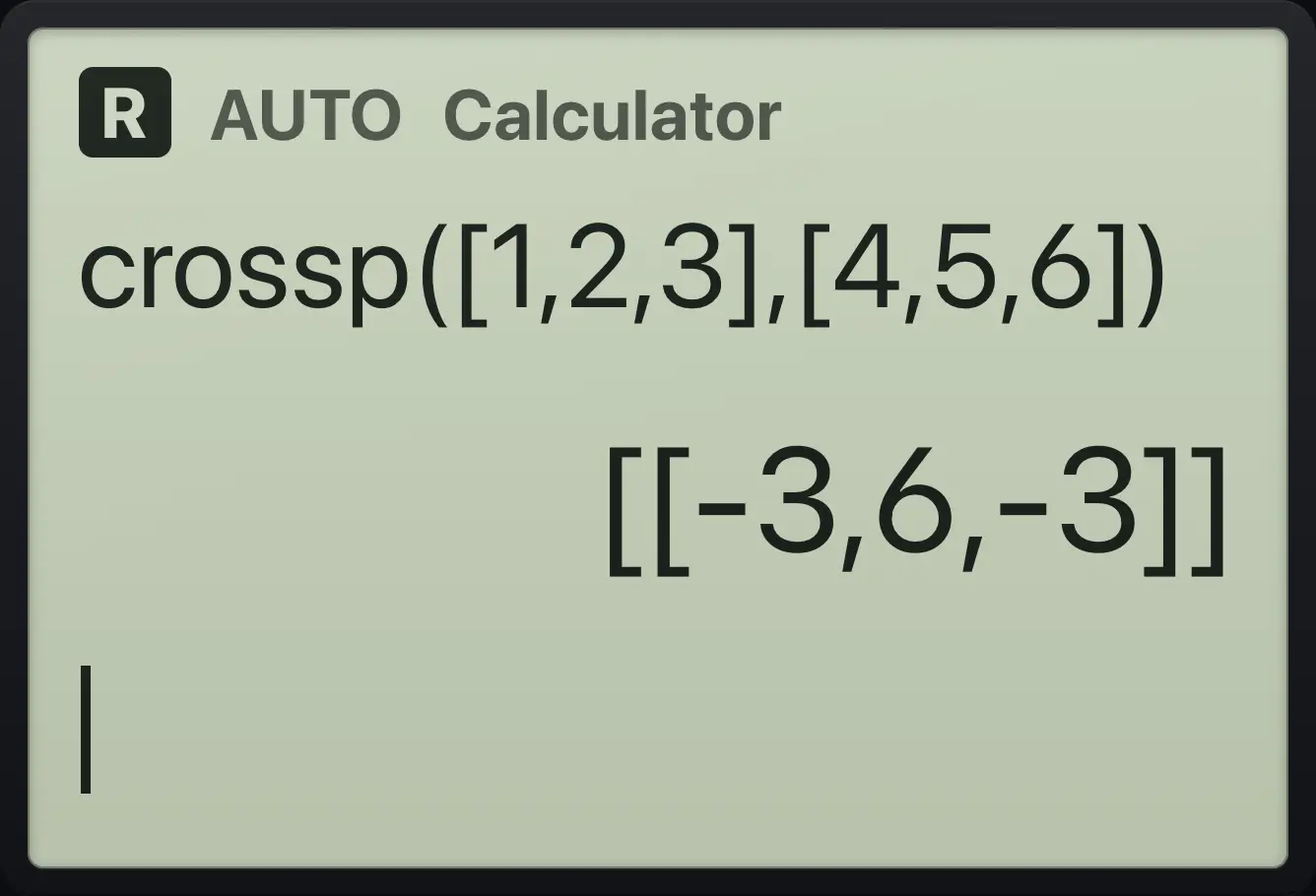

Result of the example "Cross product" The display shows: crossp([1,2,3],[4,5,6]) / [[-3,6,-3]].
You should see[[-3,6,-3]]
Example 11.17

Length of a vector

  1. Type norm([3,4]).

    norm(ctrl[(3,4ctrl]))enter

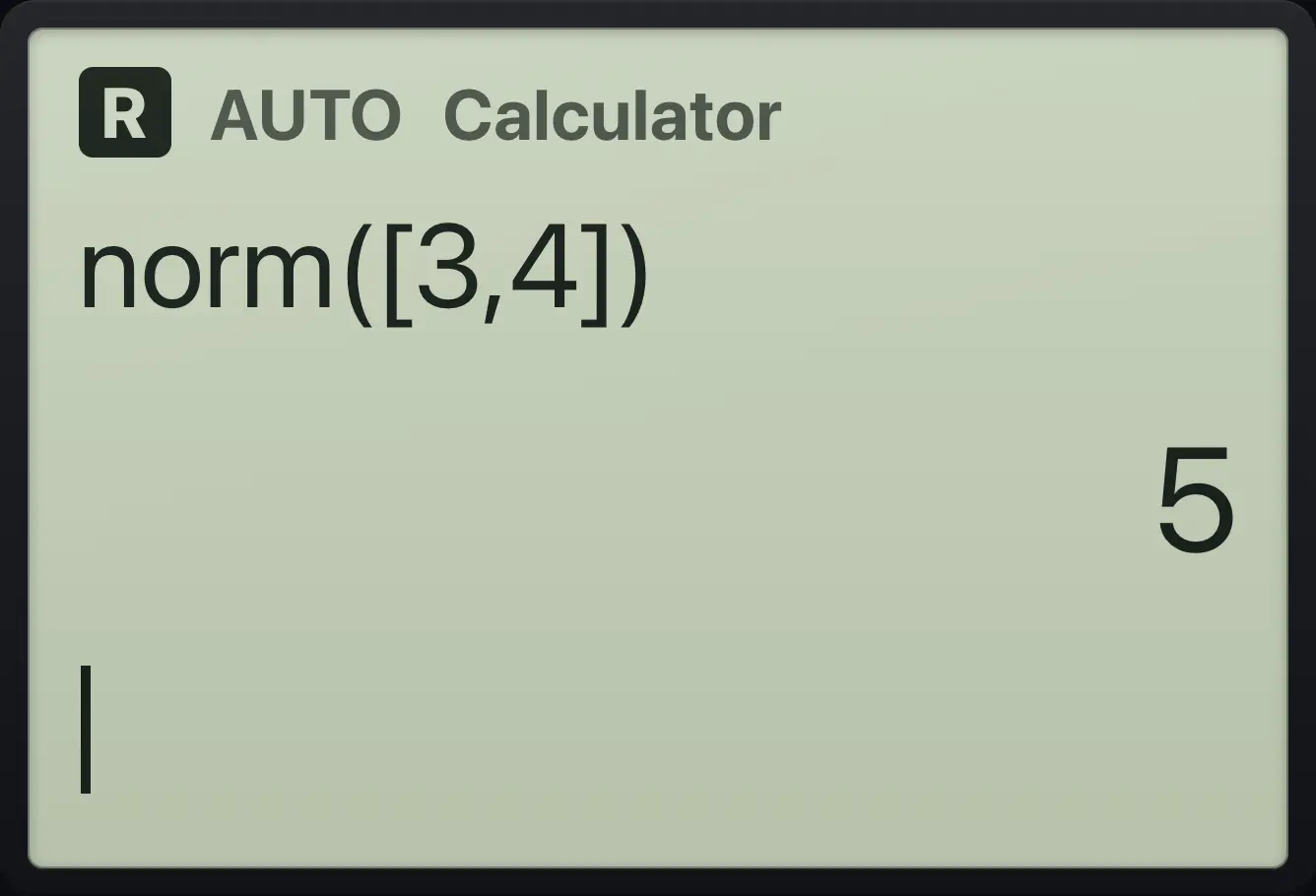

Result of the example "Length of a vector" The display shows: norm([3,4]) / 5.
You should see5

11.5Size of a matrix#

Example 11.18

Dimensions

  1. Type dim([[1,2,3][4,5,6]]).

    dim(ctrl[(ctrl[(1,2,3ctrl])ctrl[(4,5,6ctrl])ctrl]))enter

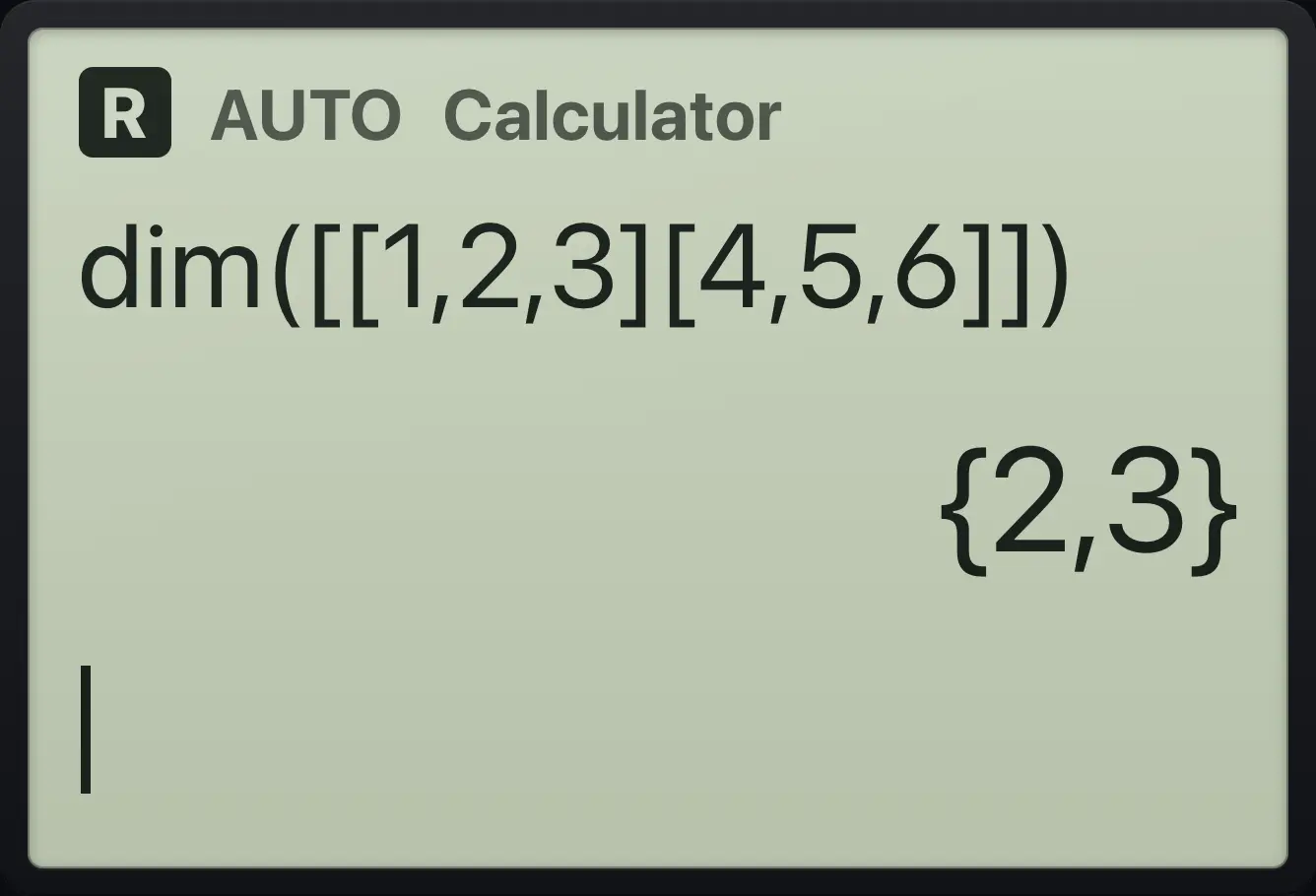

Result of the example "Dimensions" The display shows: dim([[1,2,3][4,5,6]]) / {2,3}.
You should see{2,3}
Example 11.19

Row count

  1. Type rowDim(...).

    rowdim(ctrl[(ctrl[(1,2,3ctrl])ctrl[(4,5,6ctrl])ctrl]))enter

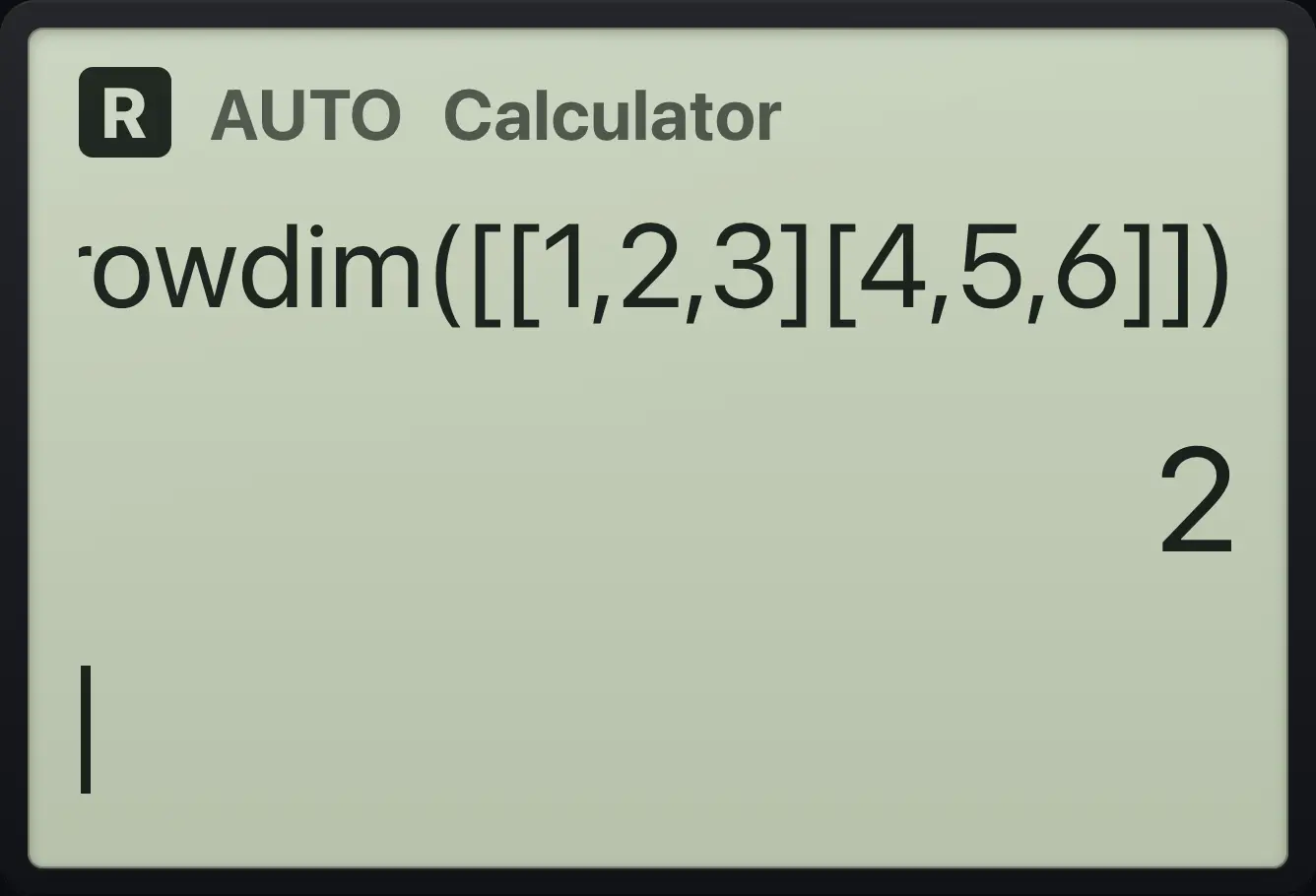

Result of the example "Row count" The display shows: rowdim([[1,2,3][4,5,6]]) / 2.
You should see2
Example 11.20

Column count

  1. Type colDim(...).

    coldim(ctrl[(ctrl[(1,2,3ctrl])ctrl[(4,5,6ctrl])ctrl]))enter
Result of the example "Column count" The display shows: coldim([[1,2,3][4,5,6]]) / 3.
You should see3
