Classic CAS manual · Chapter 6 of 16

Menus, templates and catalog

The Menu, Home menu, templates, symbols, relations, trig menu, catalog and variable list: what each one holds and how to choose from it.

6.1How menus work#

A menu lists items with numbers 1 to 9, and then letters A, B, C… Press a number or letter key to choose that item, or use ▲ and ▼ and press enter. esc closes the menu. Choosing a function pastes its name with an opening bracket into your entry.

menu
3 Algebra
1 solve(
type the arguments

Pick an item by number: for example solve is in Algebra (3), first item (1).

6.2The Menu key#

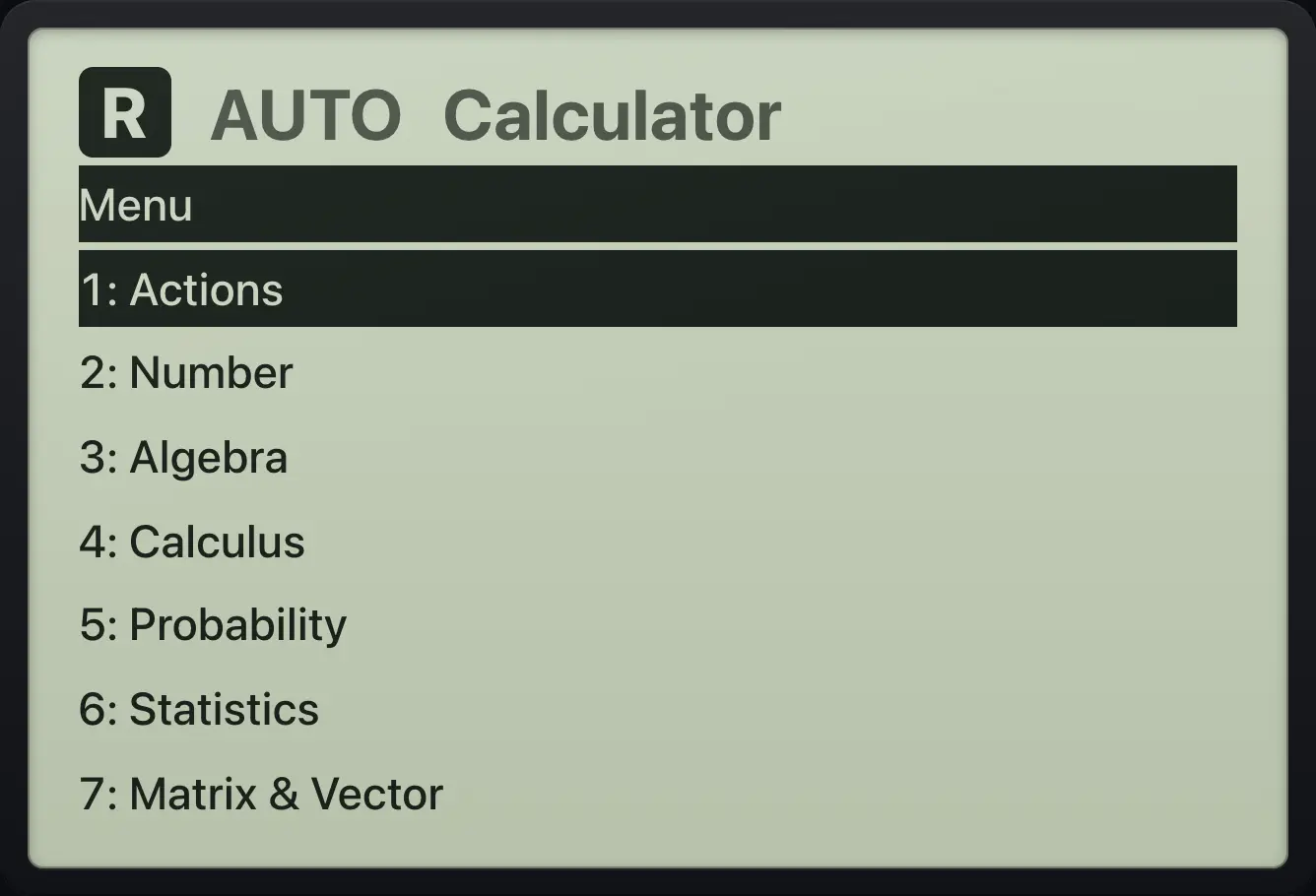

The Menu on the calculator page (nine categories; Complex and Settings follow Matrix and Vector). The display shows: Menu / 1: Actions / 2: Number / 3: Algebra / 4: Calculus / 5: Probability / 6: Statistics / 7: Matrix & Vector. — The Menu on the calculator page (nine categories; Complex and Settings follow Matrix and Vector).

Item	Name	What it holds
1	Actions	Define, Delete Variable, :=, →, the with bar \|, Clear History
2	Number	approx, exact, factor, propFrac, gcd, lcm, mod, remain, floor, ceiling, round, iPart, fPart, isprime, abs, sign
3	Algebra	solve, factor, expand, zeros, cSolve, cFactor, cZeros, nSolve, comDenom, propFrac, getNum, getDenom, left, right, polyQuotient, polyRemainder, polyGcd, polyDegree, polyCoeffs
4	Calculus	Derivative, Integral, Definite integral, Limit, Sum, Product, taylor, nDeriv, nInt, arcLen, tangentLine, normalLine, fMin, fMax, impDif
5	Probability	Factorial, nCr, nPr, rand, randInt, normCdf, normPdf, invNorm, binomPdf, binomCdf, poissPdf, poissCdf, geomPdf, geomCdf, tCdf, invt
6	Statistics	mean, median, stDevSamp, stDevPop, varSamp, varPop, sum, product, cumulativeSum, seq, max, min
7	Matrix & Vector	2×2 matrix, det, rref, ref, identity, Transpose, dotP, crossP, norm, dim, rowDim, colDim, augment
8	Complex	𝑖, real, imag, conj, angle, abs
9	Settings	Opens the Settings form

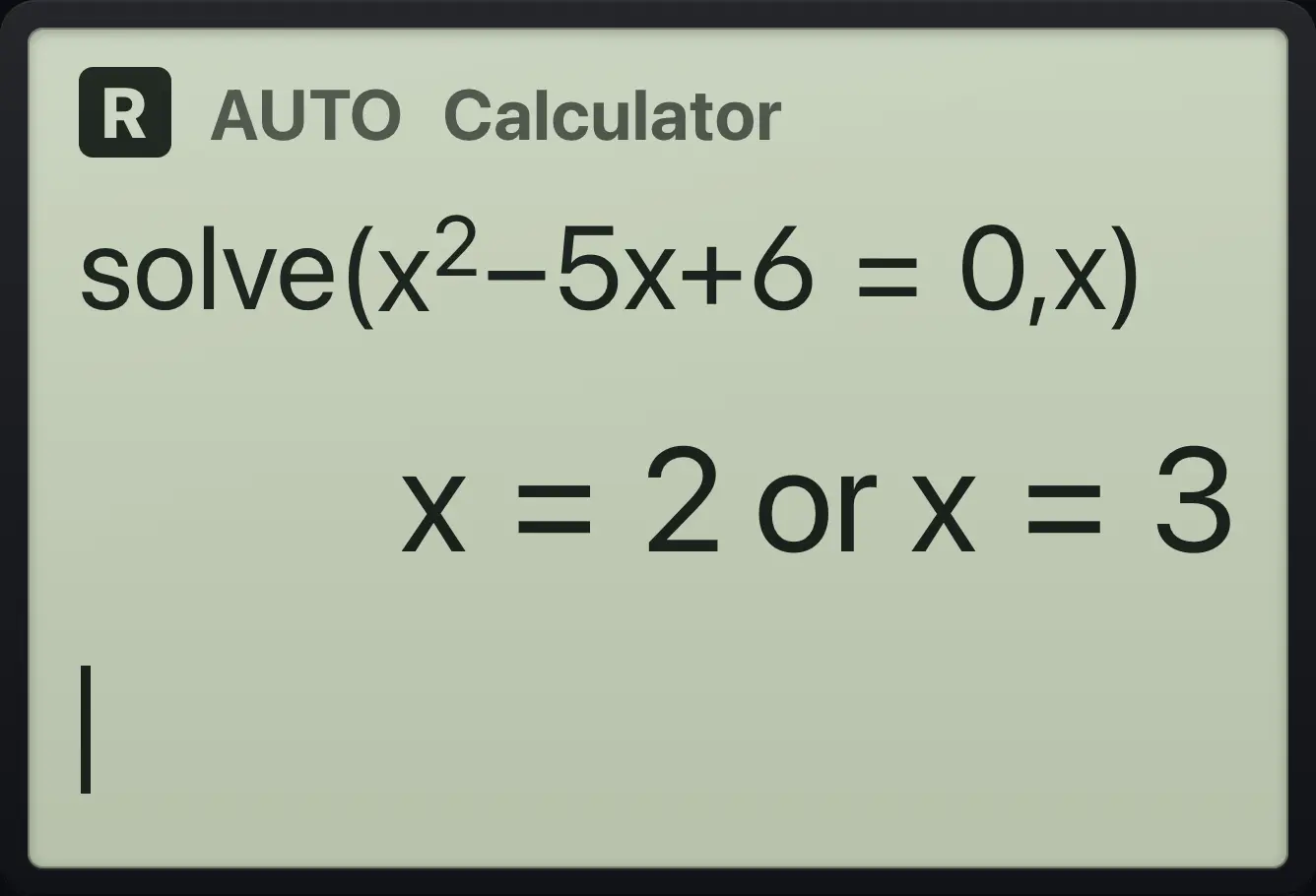

Example 6.1

Solve from the Algebra menu

Press menu, 3, 1. Then type the equation and the variable, and close the bracket.
menu31x^2▶−5x+6=0,x)enter

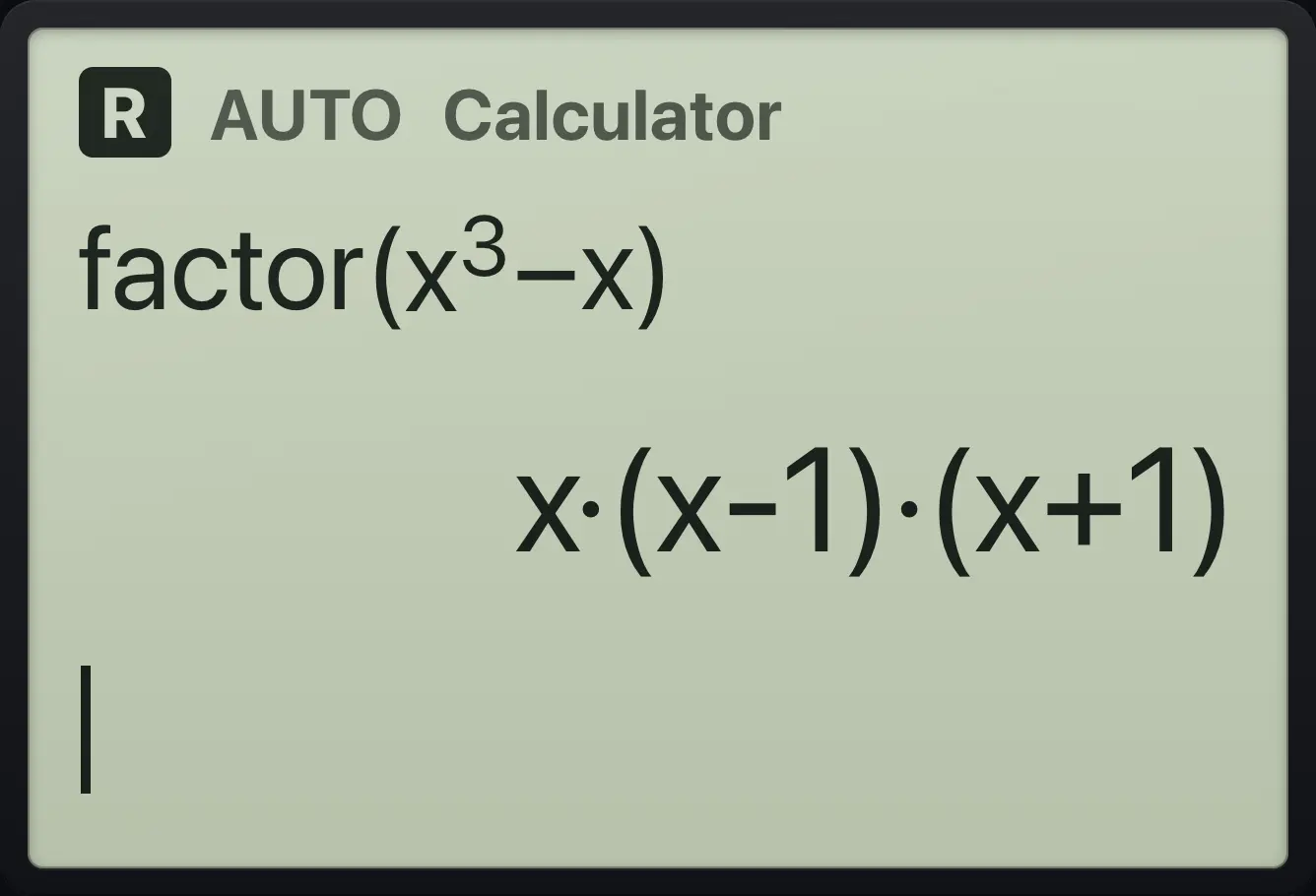

Example 6.2

Factor from the Algebra menu

Press menu, 3, 2 (factor), type x^3 − x.
menu32x^3▶−x)enter

6.3The Home menu#

The Home menu. The display shows: Home / 1: Calculator / 2: Graphs / 3: Settings / 4: Clear History / 5: Clear a–z (all variables) / 6: Reset. — The Home menu.

Item	What it does
1 Calculator	Go to the calculator page.
2 Graphs	Go to the graphs page.
3 Settings	Open the settings form.
4 Clear History	Clear the calculator screen; variables stay.
5 Clear a–z (all variables)	Forget every stored variable and function.
6 Reset	Reset everything: history, variables, settings and graphs.

6.4Templates: fractions, roots, integrals#

Templates draw maths as you would write it, with boxes for the parts. Type in the first box, then press ▶ (or tab) to move to the next box. ▲ and ▼ also move between boxes.

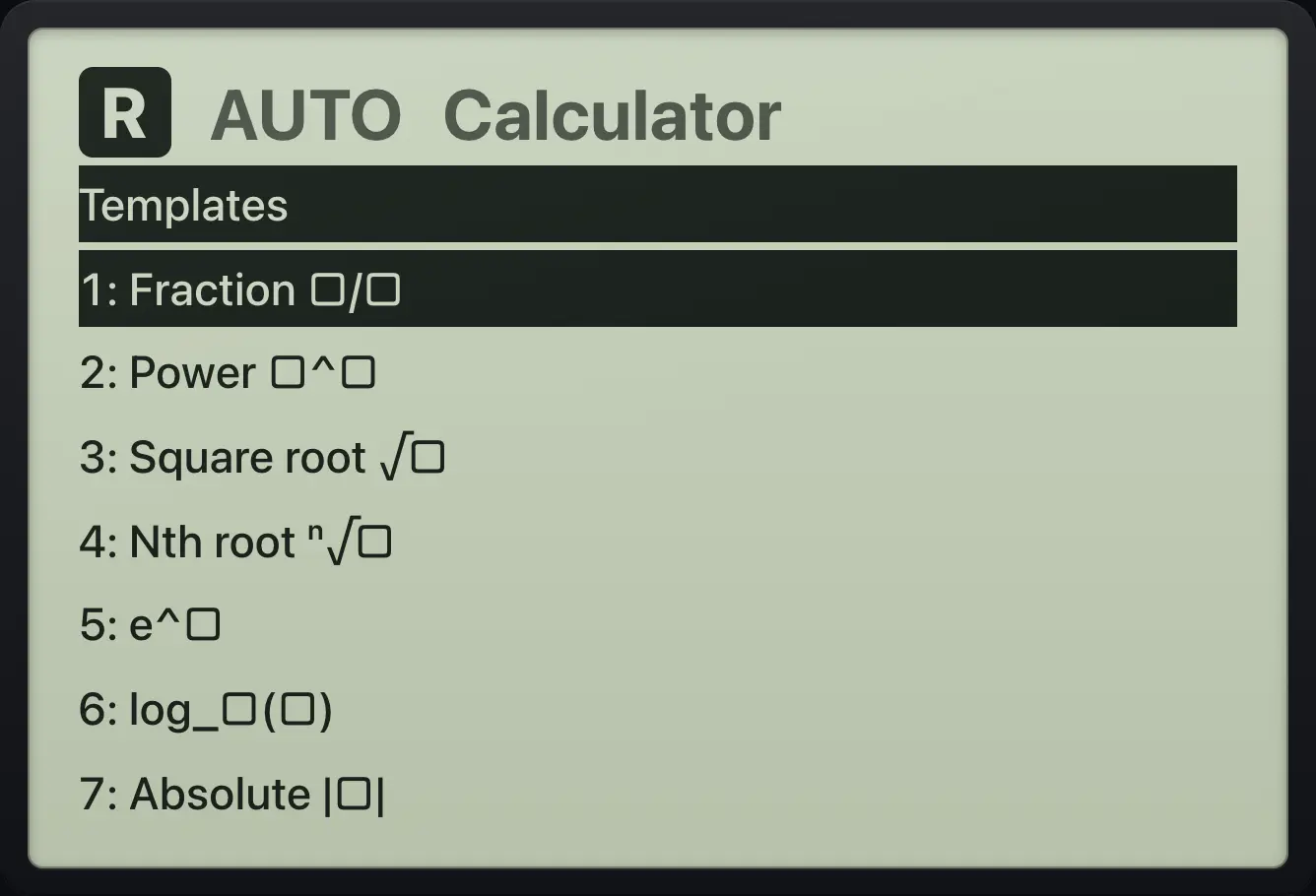

The Templates menu (14 items; the rest are scrolled below). The display shows: Templates / 1: Fraction □/□ / 2: Power □^□ / 3: Square root √□ / 4: Nth root ⁿ√□ / 5: e^□ / 6: log_□(□) / 7: Absolute |□|. — The Templates menu (14 items; the rest are scrolled below).

Item	Template	Boxes to fill, in order
1	Fraction	top, bottom
2	Power	exponent
3	Square root	radicand
4	Nth root	index, radicand
5	e to a power	exponent
6	log with a base	base, argument
7	Absolute value	value
8	Derivative d/dx	variable, expression
9	Integral	expression, variable
A	Definite integral	lower, upper, expression, variable
B	Sum Σ	variable, start, end, expression
C	Product Π	variable, start, end, expression
D	Limit	variable, target, expression
E	Mixed number	whole, numerator, denominator

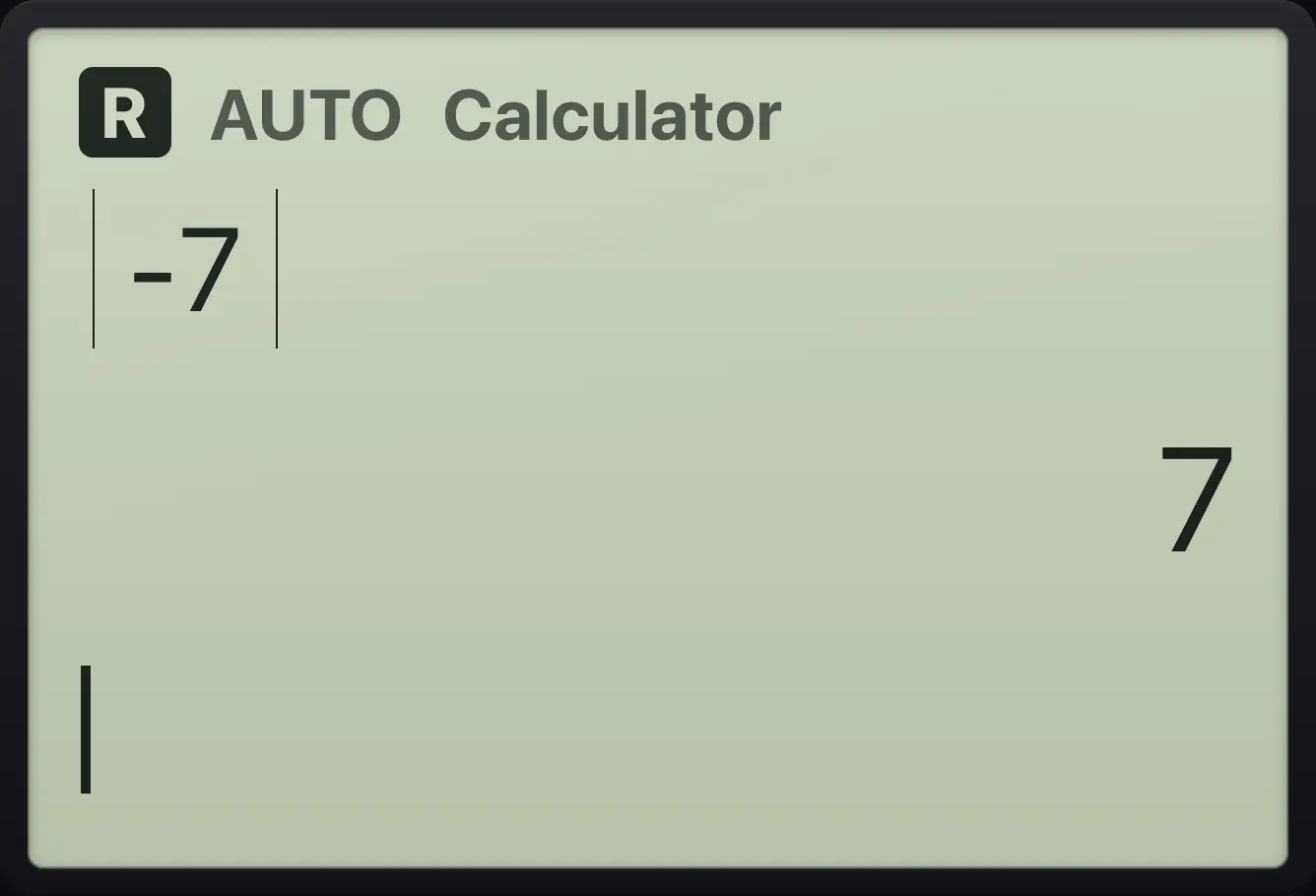

Example 6.3

Absolute value template

Open templates, choose 7, type negative 7, press enter.
templates7(−)7enter

6.5Symbols and relations#

ctrlsymbolstemplates opens a list of symbols: ∞, θ, °, !, ≠, ≤, ≥, |, →, :=, ᵀ and the imaginary unit. ctrl≠≥▸= opens the relations list: =, ≠, <, >, ≤, ≥, | and :=. These are the only ways to type the signs < > ≤ ≥ ≠.

The Symbols menu. The display shows: Symbols / 1: ∞ / 2: θ / 3: ° / 4: ! / 5: ≠ / 6: ≤ / 7: ≥. — The Symbols menu.

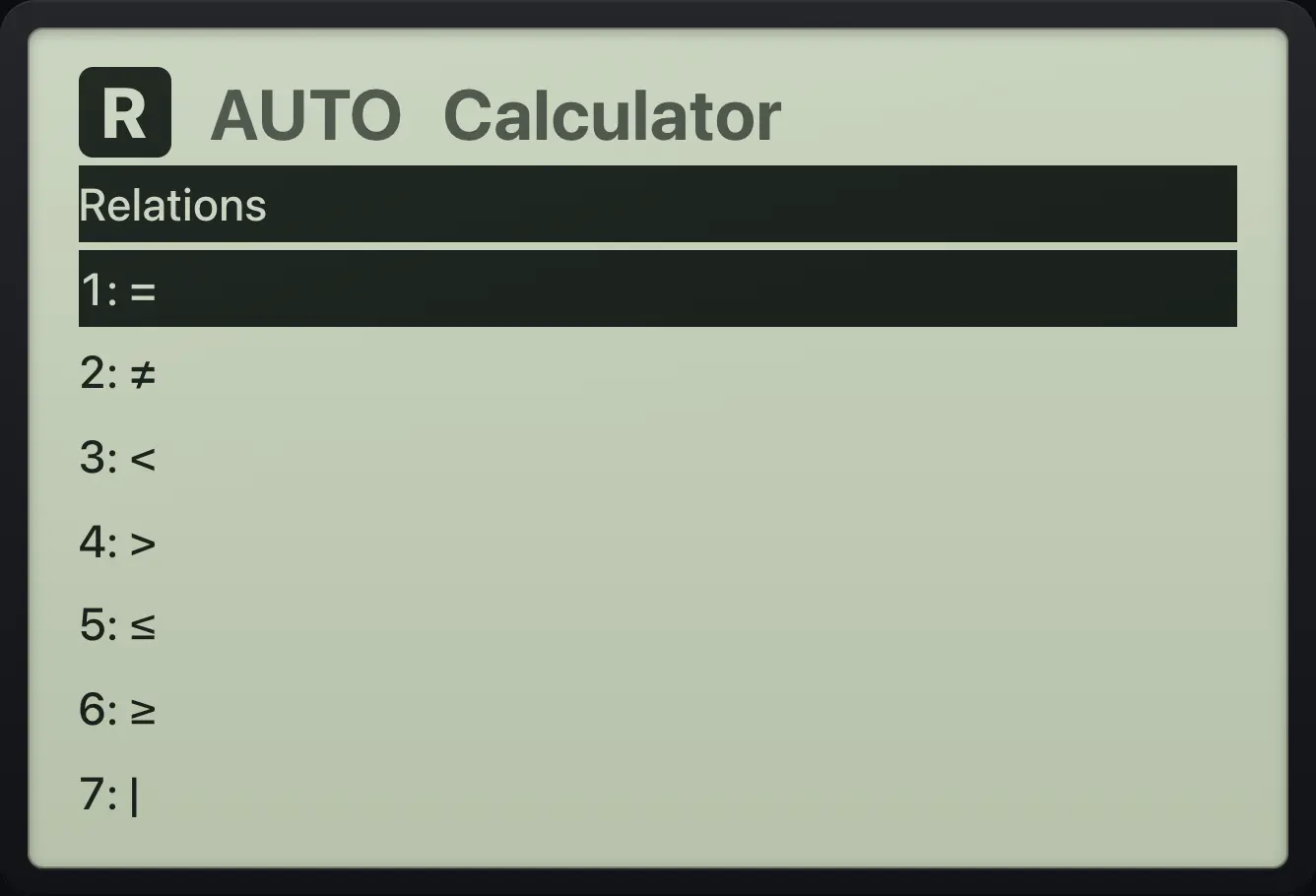

The Relations menu. The display shows: Relations / 1: = / 2: ≠ / 3: < / 4: > / 5: ≤ / 6: ≥ / 7: |. — The Relations menu.

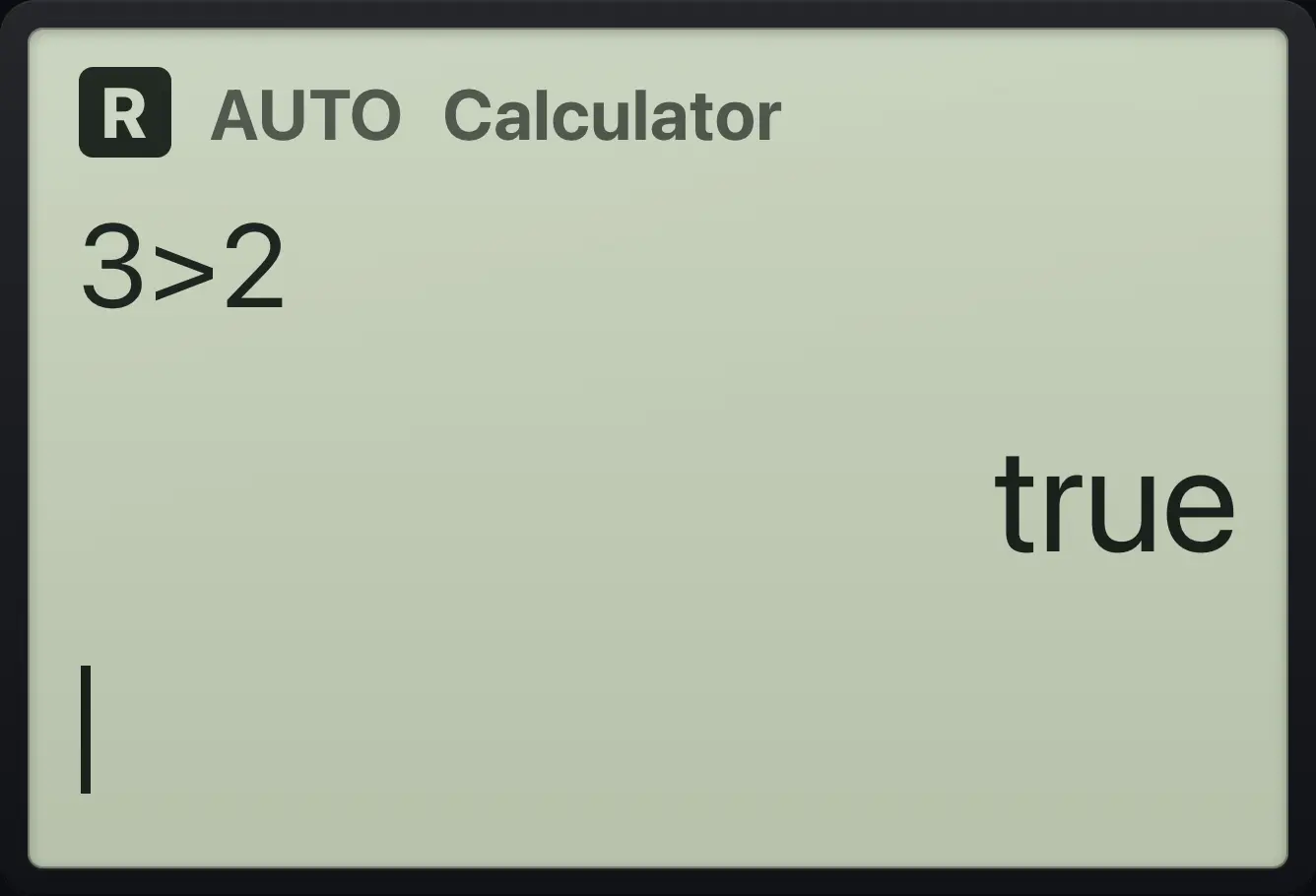

Example 6.4

Compare two numbers

Type 3, open relations (ctrl =), choose > (item 4), type 2.
3ctrl≠≥▸=42enter

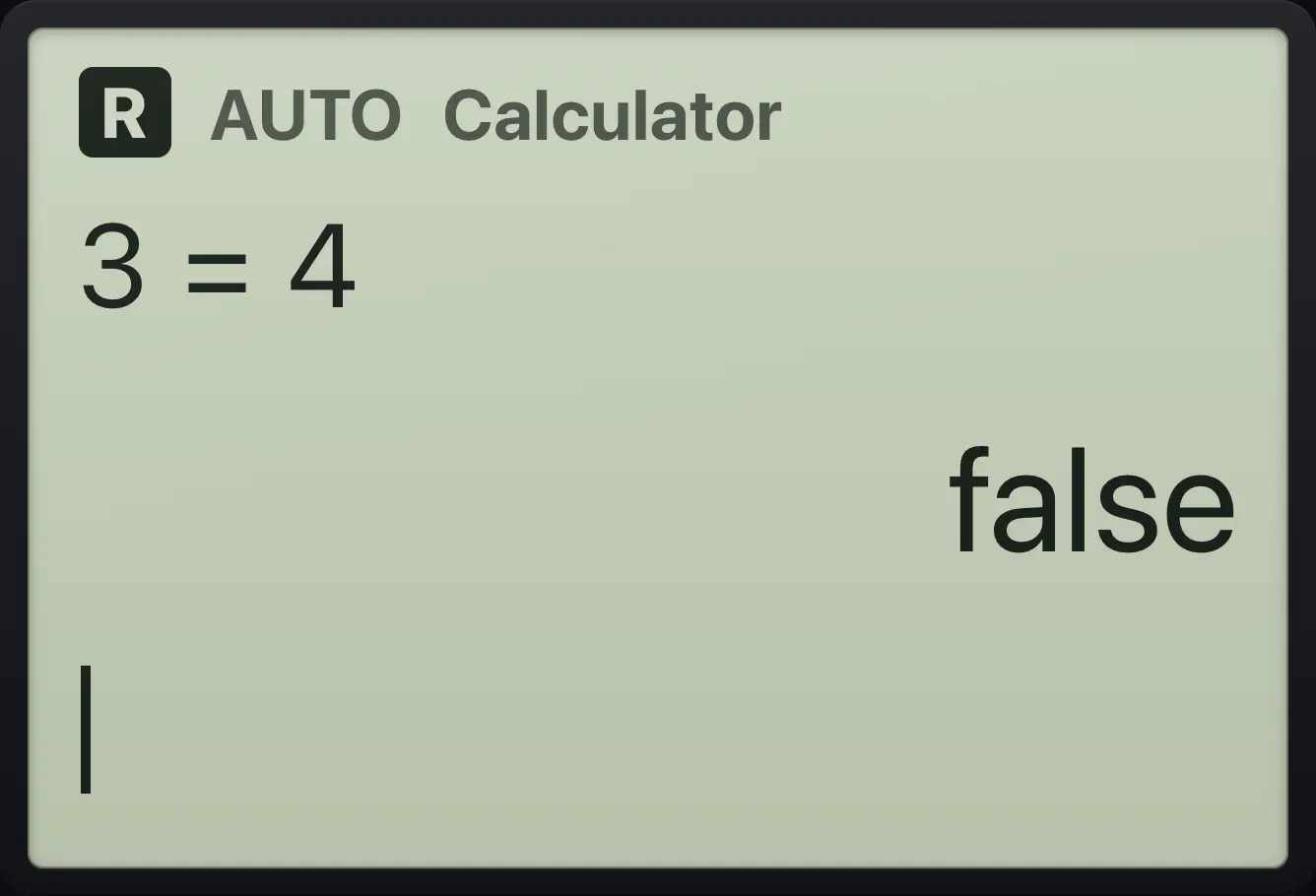

Example 6.5

A false statement

Type 3 = 4.
3=4enter

6.6The catalog#

catalog lists every function name alphabetically. Press a letter key to jump to the first name starting with that letter, then press enter to paste it.

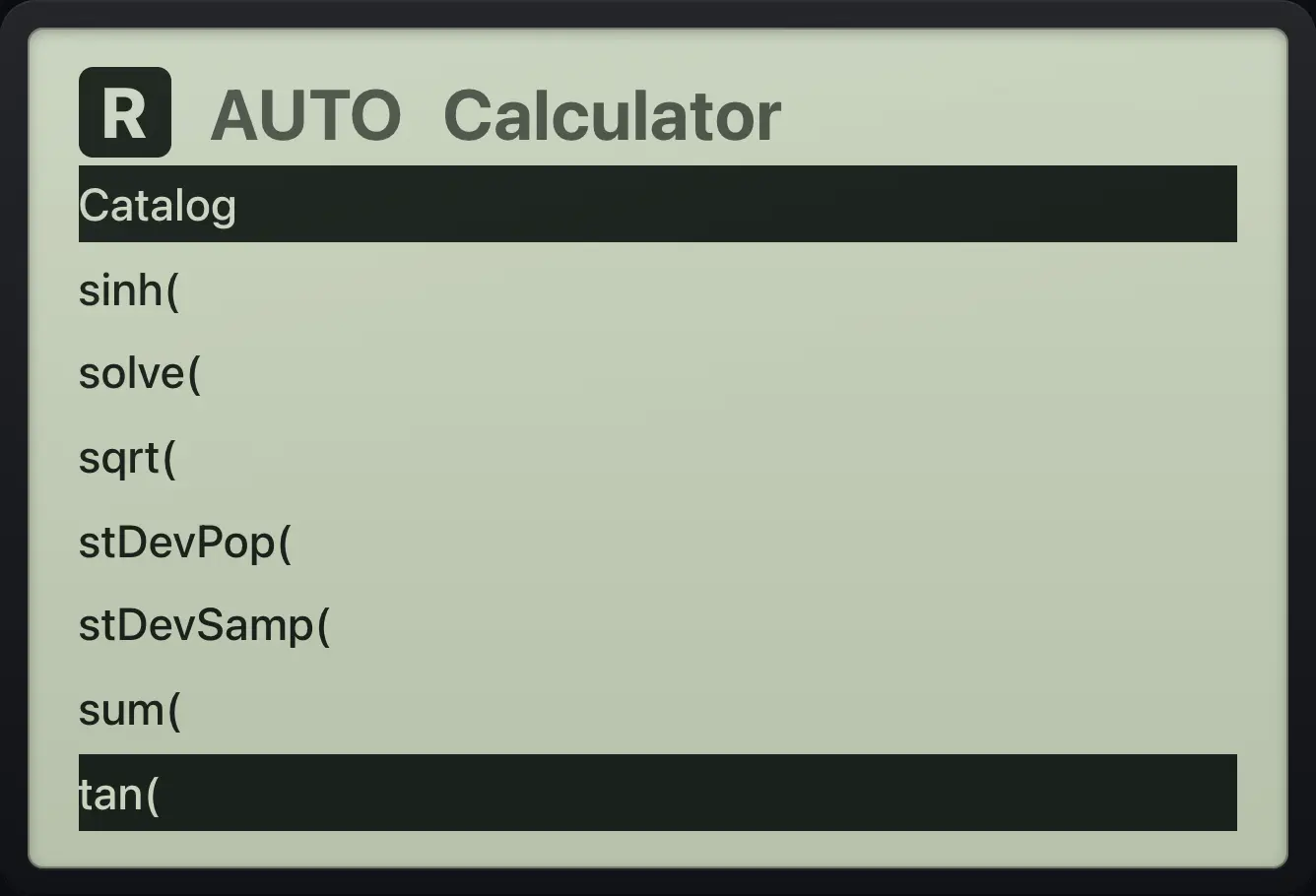

Catalog after pressing t: the first name starting with t is selected. The display shows: Catalog / sinh( / solve( / sqrt( / stDevPop( / stDevSamp( / sum( / tan(. — Catalog after pressing t: the first name starting with t is selected.

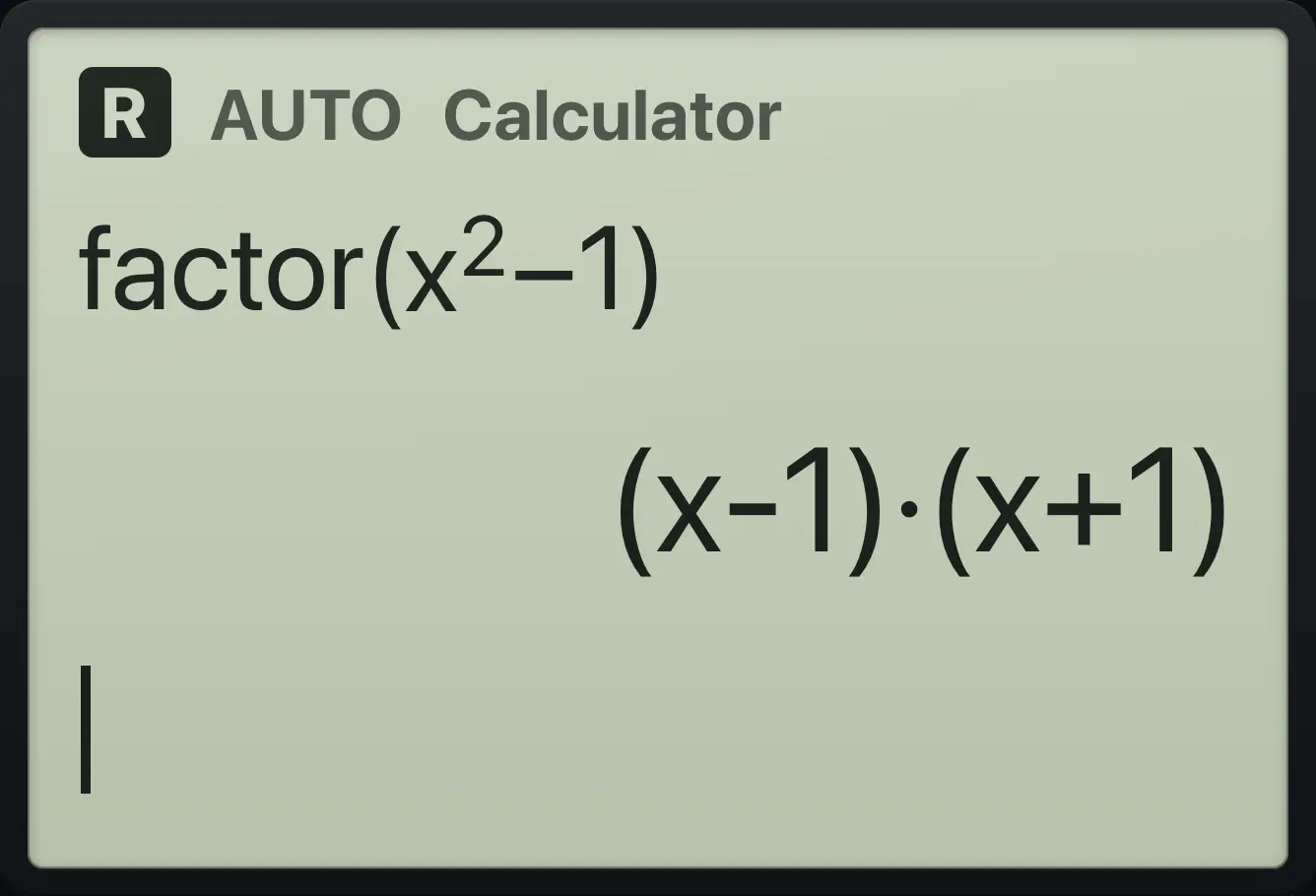

Example 6.6

Paste factor( from the catalog

Press catalog, press f, press enter, then type the expression.
catalogfenterx^2▶−1)enter

6.7The variable list#

var shows the variables you have stored and the functions you have defined. Choose one to paste its name.

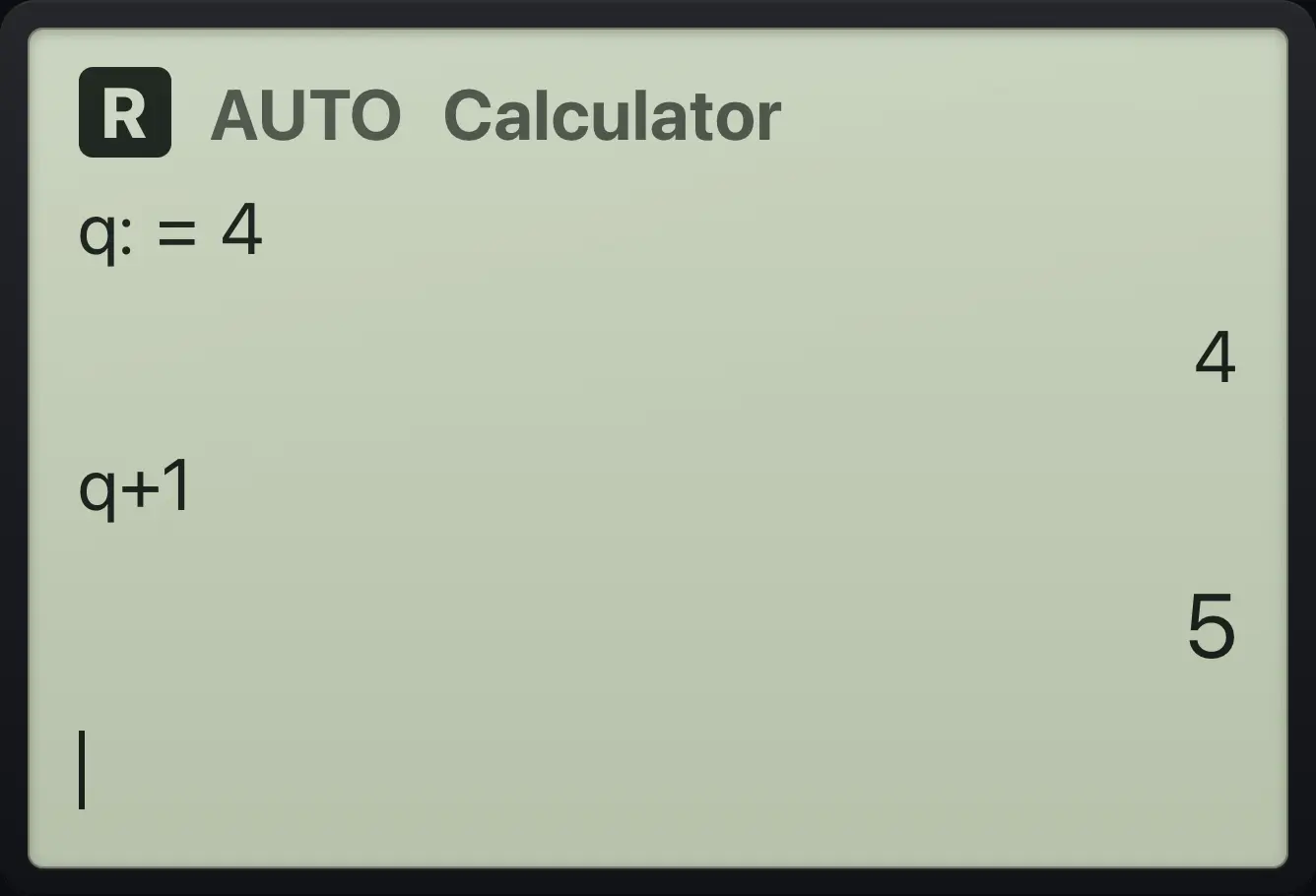

Example 6.7

Paste a variable

Store 4 in q, then press var, enter, and add 1.
q:=4entervarenter+1enter
