Trident Help

Natural Color Graphing manual · Chapter 8 of 18

Complex numbers

Arithmetic with i, and the CPLX tools.

8.1Calculate with i#

Choose a+bi or r∠θ in SET UP (Complex Mode). Type i with ALPHAi×10ˣ. The CPLX group in OPTN holds Abs, Arg, Conjg, ReP and ImP.

Example 8.1

Square of 1 + i

  1. SET UP, Complex Mode a+bi, EXIT.

    SHIFTSET UPMENU▼▼▼F2EXIT

  2. (1 + i)².

    (1+ALPHAi×10ˣ)x²EXE
Result of the example "Square of 1 + i" The display shows: (1+i)² / 2i / · DEL-H MAT MATH · ·.
You should see2i
Example 8.2

Root of a negative number

  1. With a+bi mode, √-4.

    SHIFTSET UPMENU▼▼▼F2EXITSHIFT√x²(−)4EXE

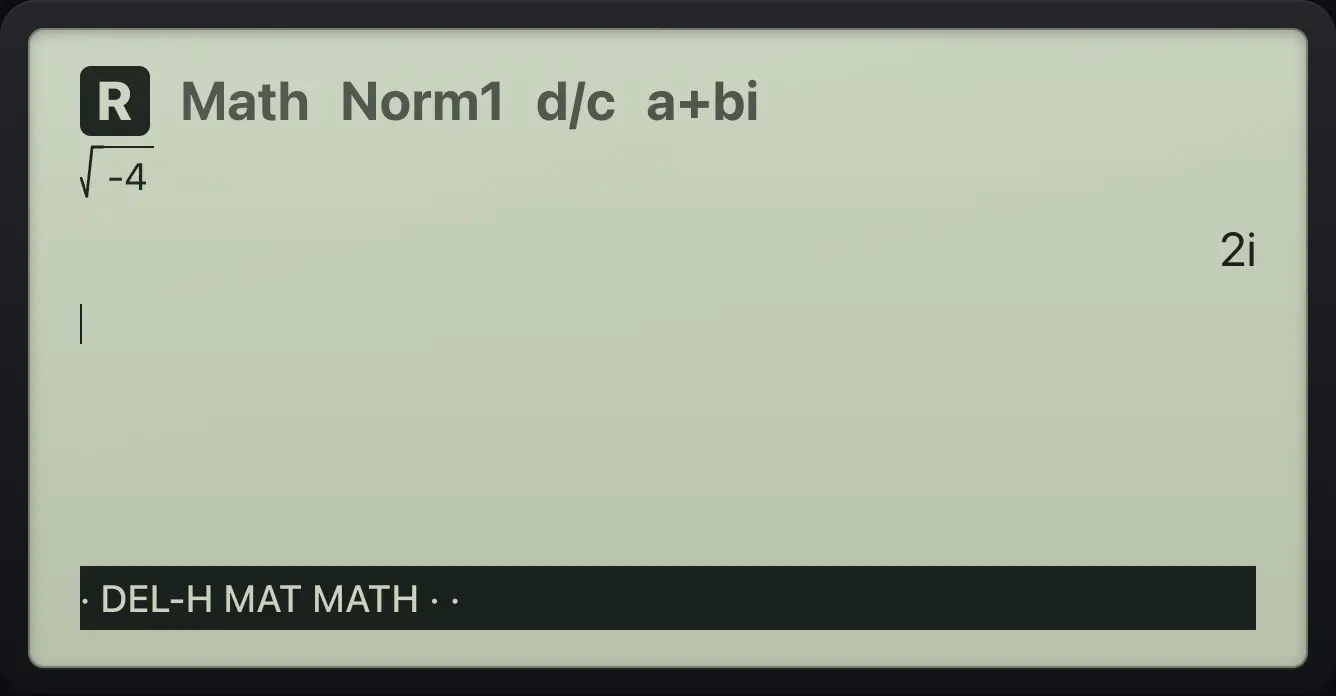

Result of the example "Root of a negative number" The display shows: √(-4) / 2i / · DEL-H MAT MATH · ·.
You should see2i
Example 8.3

Real mode refuses

  1. In Real mode √-4 fails.

    SHIFT√x²(−)4EXE

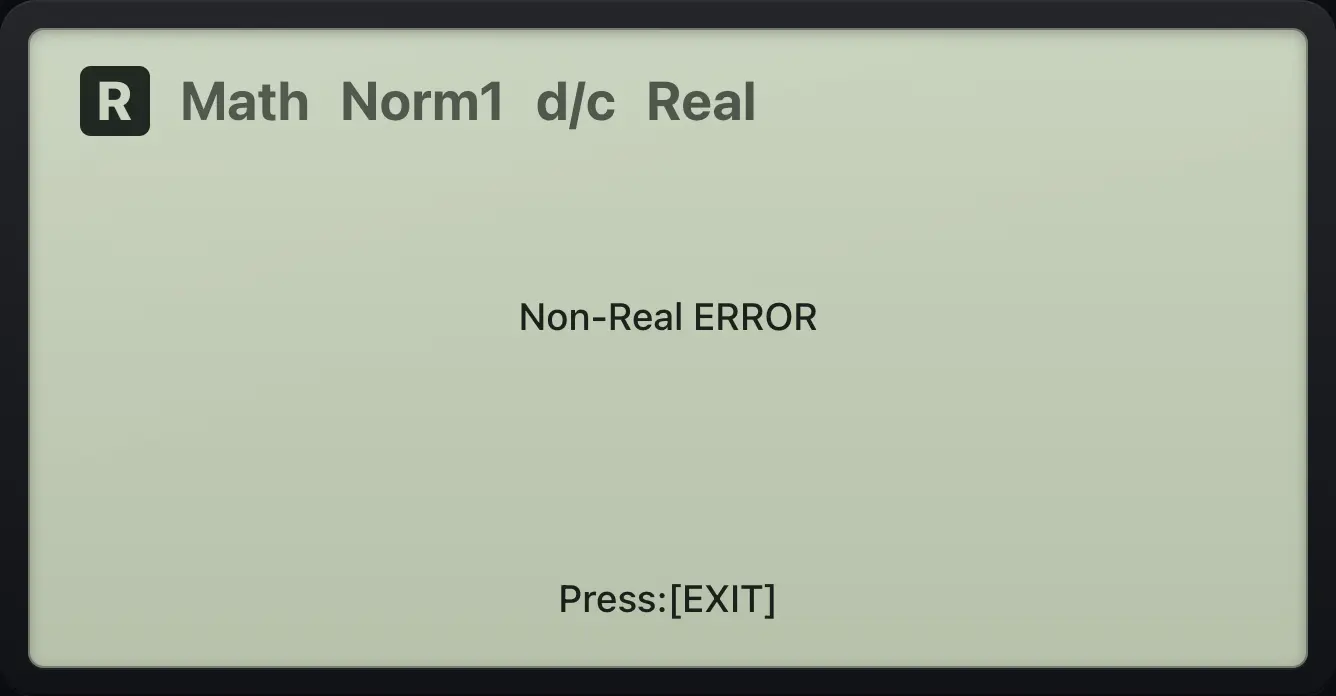

Result of the example "Real mode refuses" The display shows: Non-Real ERROR / Press:[EXIT].
You should seeNon-Real ERROR

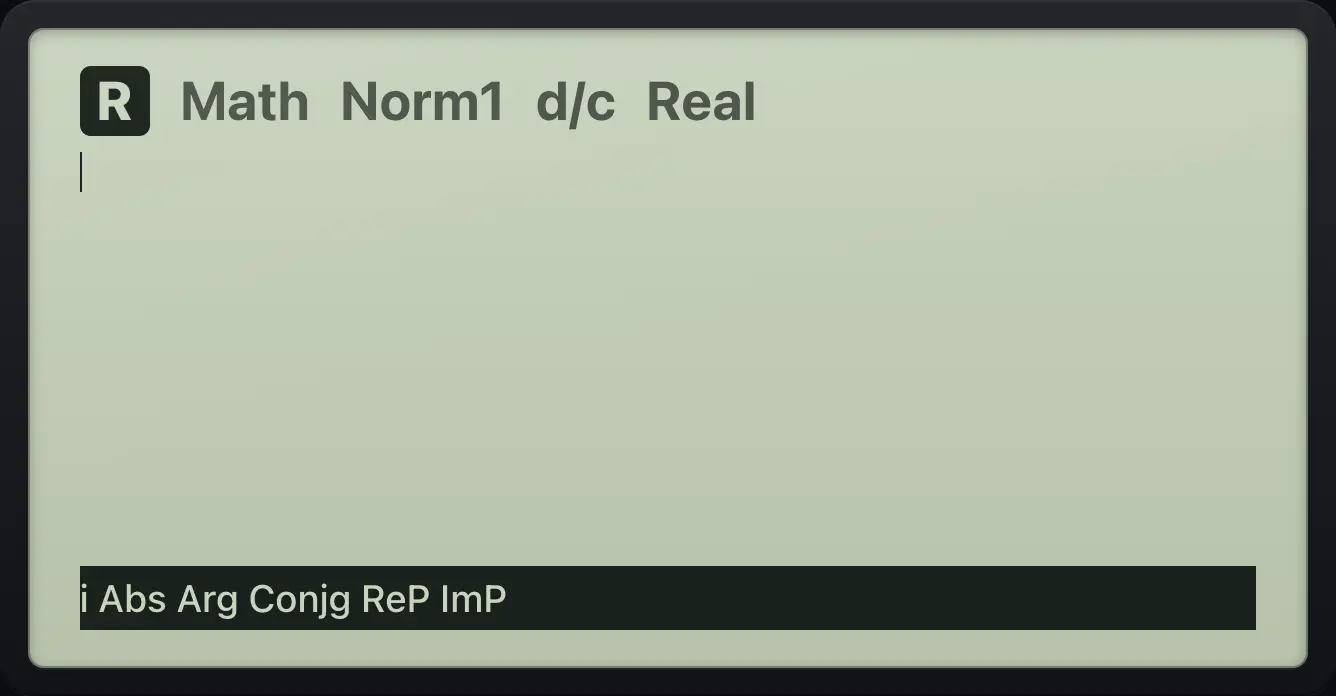

OPTN then CPLX The display shows: i Abs Arg Conjg ReP ImP.
OPTN then CPLX
