Complex numbers

Build, split and calculate with complex numbers in rectangular or polar form.

10.1Make a complex number#

A complex number is shown as (re,im). Type it directly with right shift 8 and 9, or push two reals and press left shift 1 (R→C). Right shift 1 (C→R) splits it again. Left shift 2 types the imaginary unit i.

Example 10.1

Make 3 + 4i from two reals

  1. Type 3, ENTER, 4 and press left shift 1.

    3ENTER4◀R→C1
Result of the example "Make 3 + 4i from two reals" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1:                          (3,4).
You should see1: (3,4)
Example 10.2

Type a complex number directly

  1. Right shift 8 gives parentheses, right shift 9 a comma.

    ▶( )81▶,92ENTER
Result of the example "Type a complex number directly" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1:                          (1,2).
You should see1: (1,2)
Example 10.3

A comma from the point key

  1. Left shift and the point key also type a comma.

    ▶( )83◀,.4ENTER
Result of the example "A comma from the point key" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1:                          (3,4).
You should see1: (3,4)
Example 10.4

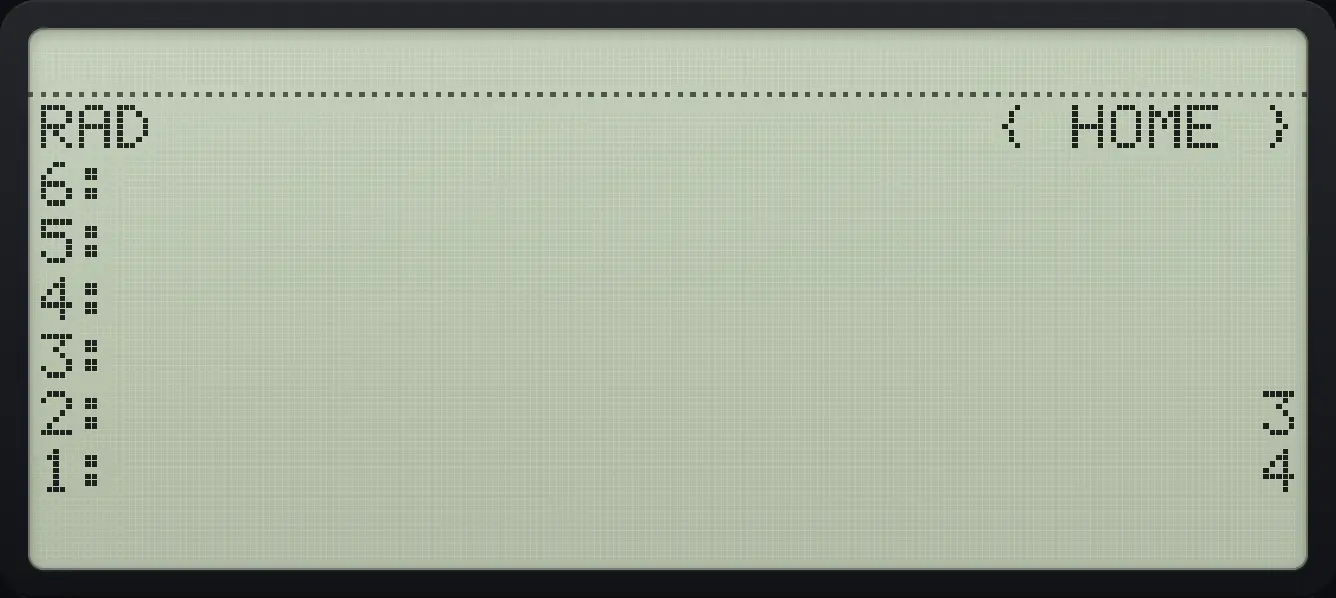

Split a complex number

  1. Press right shift 1 (C→R).

    3ENTER4◀R→C1▶C→R1
Result of the example "Split a complex number" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2:                              3 / 1:                              4.
You should see2: 3 1: 4
Example 10.5

Use the imaginary unit

  1. 2 times i plus 3.

    2◀i2×3+
Result of the example "Use the imaginary unit" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1:                          (3,2).
You should see1: (3,2)

10.2Add, multiply and divide complex numbers#

(1+2i)(3+4i)=−5+10i(1+2i)(3+4i)=-5+10i
Example 10.6

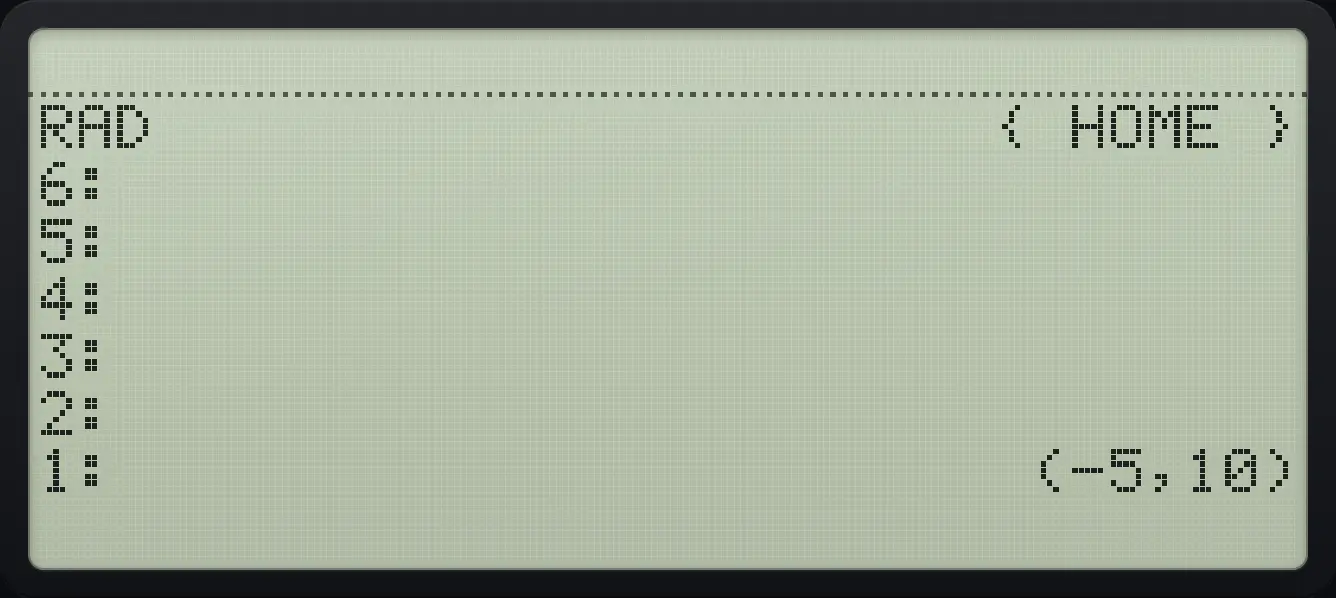

Multiply (1+2i) by (3+4i)

  1. Make each number, then multiply.

    1ENTER2◀R→C13ENTER4◀R→C1×
Result of the example "Multiply (1+2i) by (3+4i)" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1:                        (-5,10).
You should see(-5,10)
Example 10.7

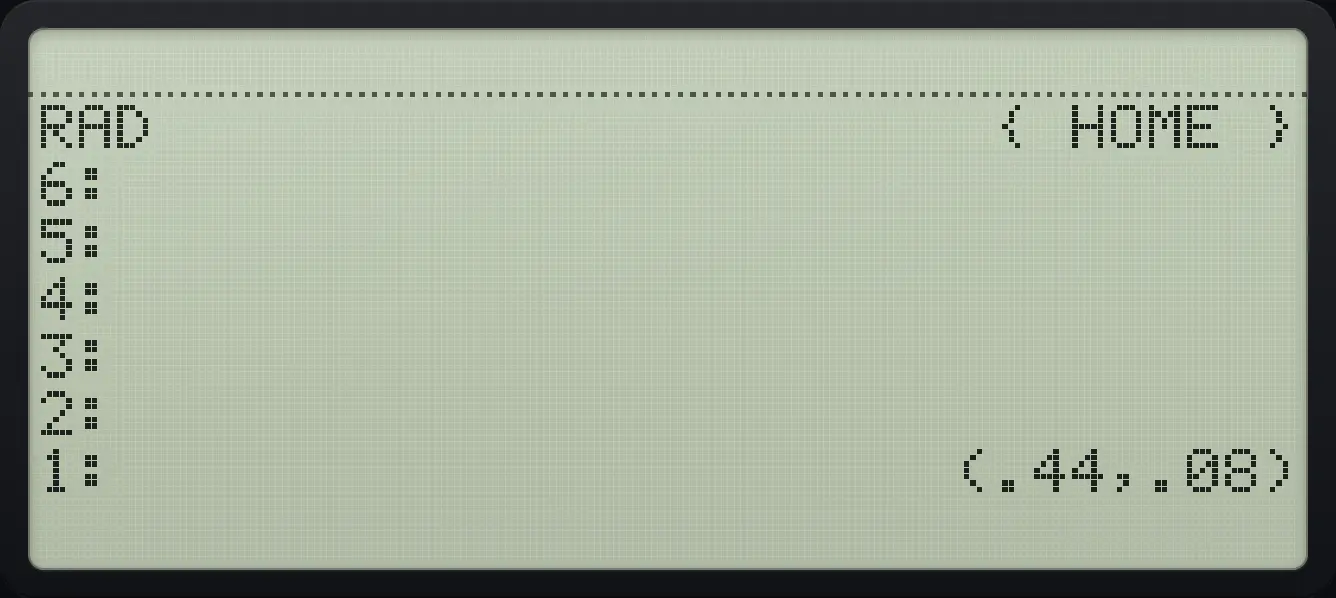

Divide (1+2i) by (3+4i)

  1. Make each number, then divide.

    1ENTER2◀R→C13ENTER4◀R→C1÷
Result of the example "Divide (1+2i) by (3+4i)" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1:                      (.44,.08).
You should see(.44,.08)
Example 10.8

The square of i

  1. i times i is −1.

    ◀i2◀i2×
Result of the example "The square of i" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1:                         (-1,0).
You should see(-1,0)
Example 10.9

Square root of a negative number

  1. A negative real has a complex square root.

    4+/−√x
Result of the example "Square root of a negative number" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1:                          (0,2).
You should see(0,2)
Example 10.10

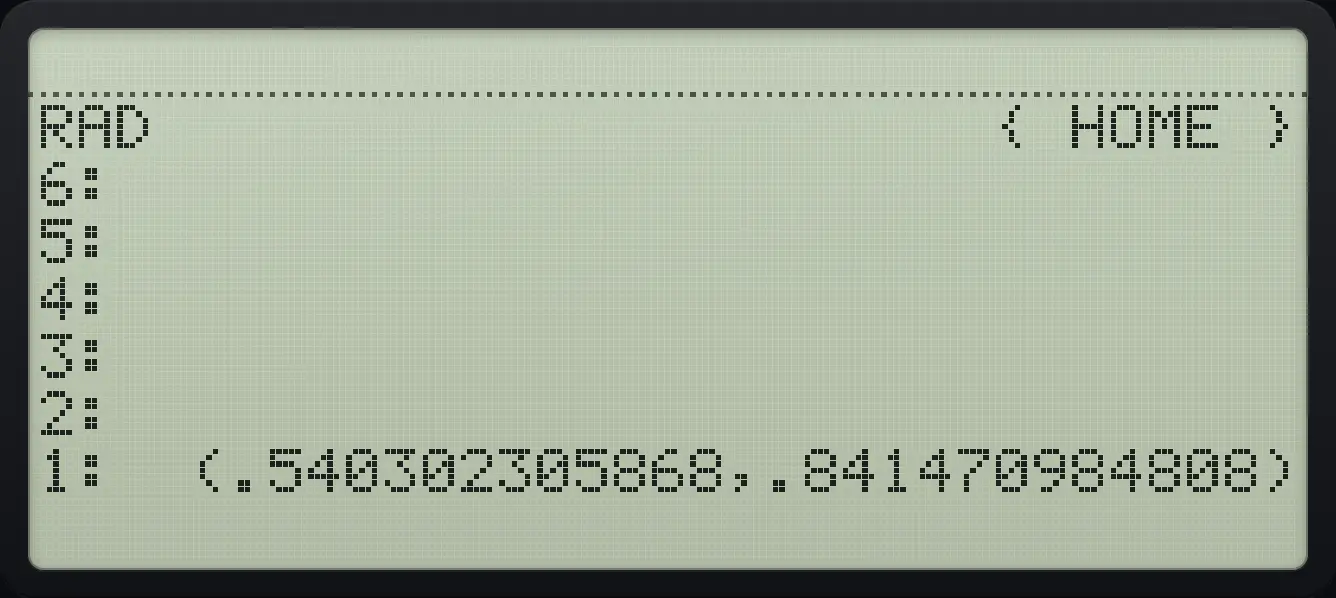

Euler: e to the power i

ei=cos⁡1+isin⁡1e^{i}=\cos1+i\sin1
  1. Put i on the stack and press EXP (left shift power).

    ◀i2◀eˣyˣ
Result of the example "Euler: e to the power i" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1:  (.540302305868,.841470984808).
You should see(.540302305868,.841470984808)

10.3The CPLX menu#

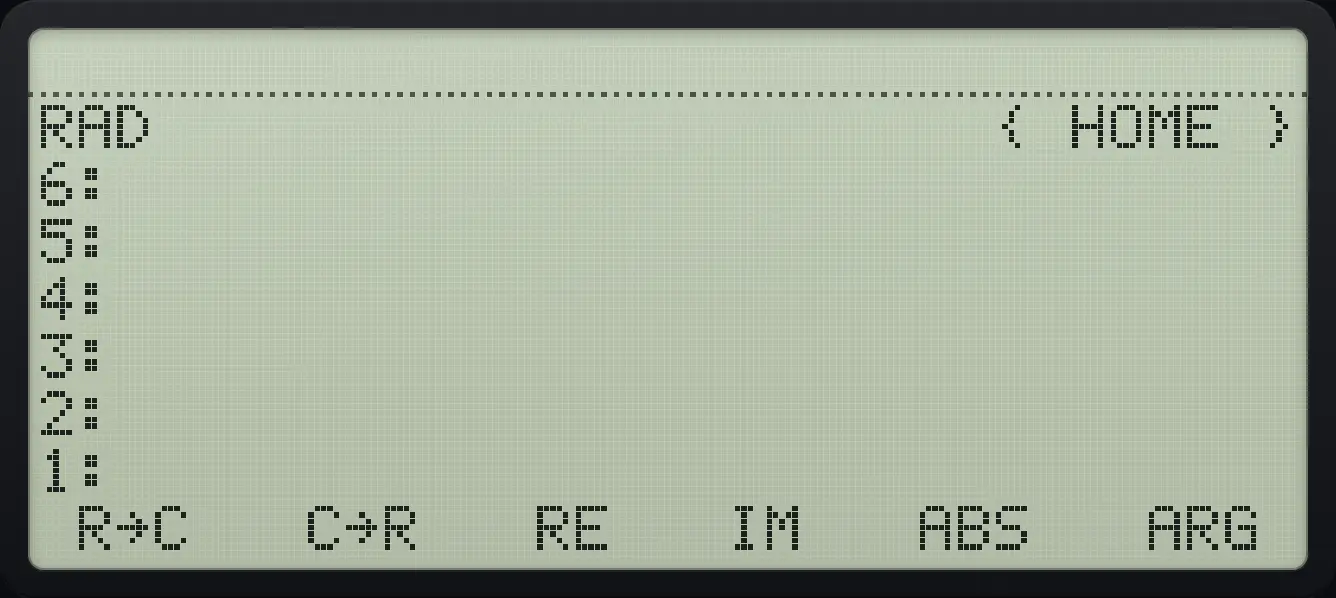

CPLX page 1: R→C, C→R, RE, IM, ABS, ARG. The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1: /  R→C   C→R   RE   IM   ABS   ARG .
CPLX page 1: R→C, C→R, RE, IM, ABS, ARG.

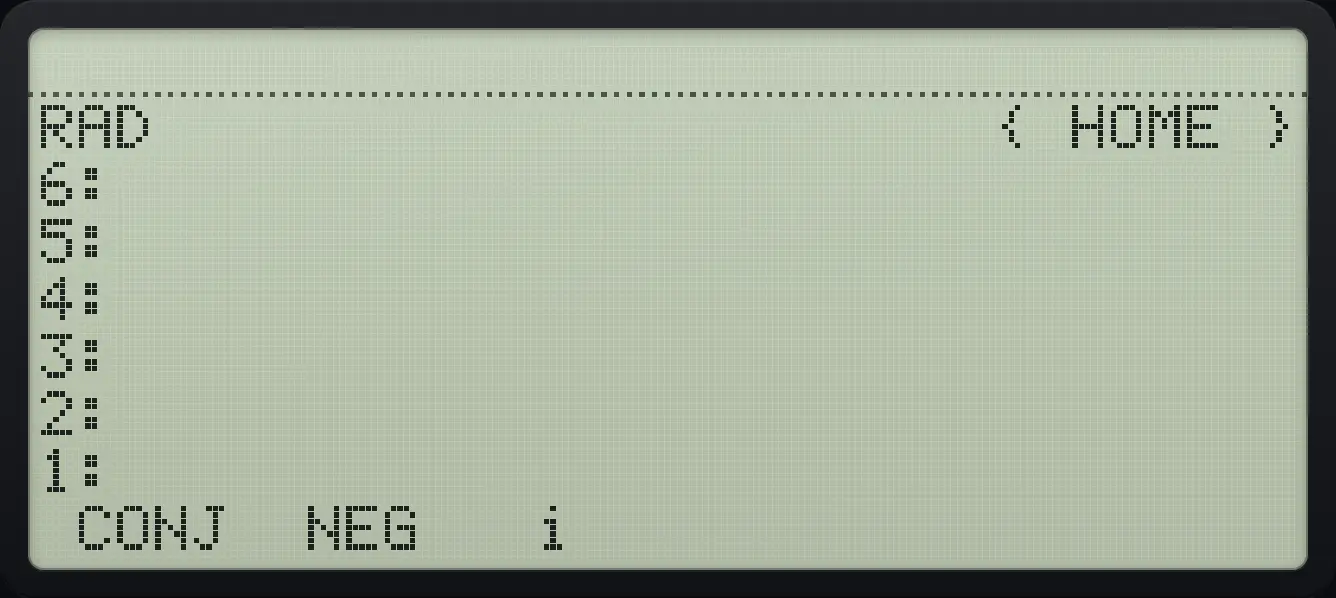

CPLX page 2: CONJ, NEG, i. The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1: /  CONJ  NEG   i                   .
CPLX page 2: CONJ, NEG, i.
CommandWhat it does
R→C, C→RBuild or split.
RE, IMThe real part or imaginary part.
ABSThe magnitude.
ARGThe angle, in the current angle unit.
CONJThe complex conjugate.
NEGChange the sign.
iPush the imaginary unit.
∣z∣=x2+y2,arg⁡z=tan⁡−1yx|z|=\sqrt{x^{2}+y^{2}},\qquad \arg z=\tan^{-1}\frac{y}{x}
Example 10.11

Real part

  1. Make 3 + 4i and press RE (third key).

    3ENTER4◀R→C1▶CPLXAPPSF3
Result of the example "Real part" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1:                              3 /  R→C   C→R   RE   IM   ABS   ARG .
You should see1: 3
Example 10.12

Imaginary part

  1. IM is the fourth key.

    3ENTER4◀R→C1▶CPLXAPPSF4
Result of the example "Imaginary part" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1:                              4 /  R→C   C→R   RE   IM   ABS   ARG .
You should see1: 4
Example 10.13

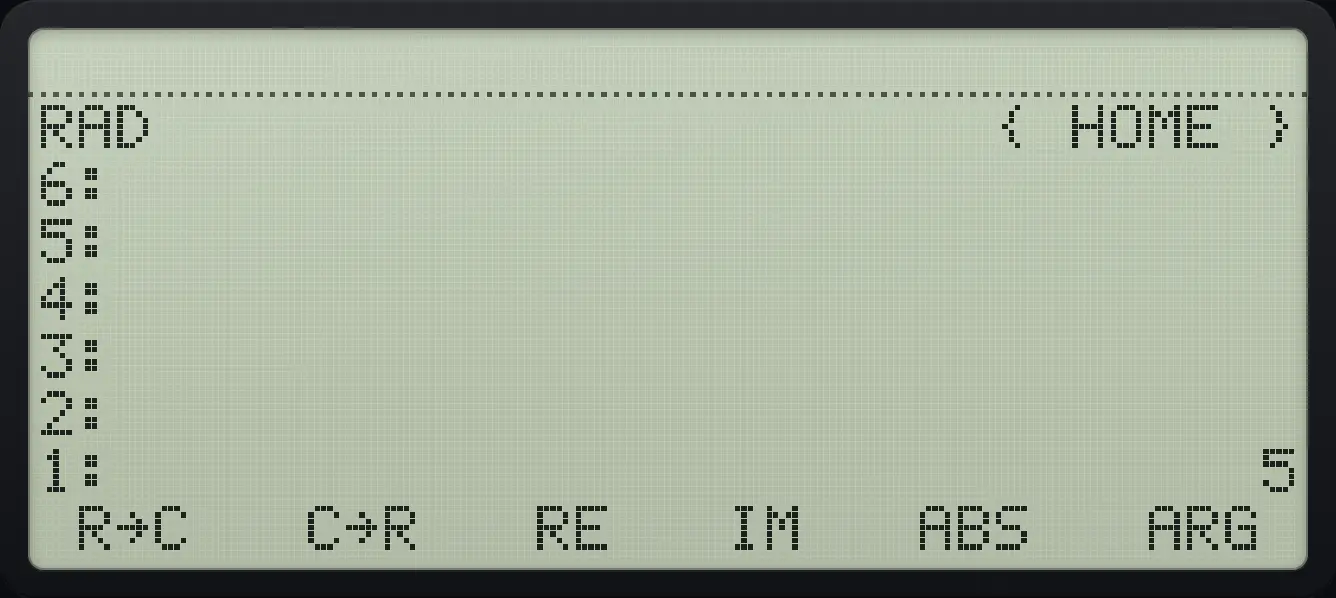

Magnitude

∣3+4i∣=5|3+4i|=5
  1. ABS is the fifth key.

    3ENTER4◀R→C1▶CPLXAPPSF5
Result of the example "Magnitude" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1:                              5 /  R→C   C→R   RE   IM   ABS   ARG .
You should see1: 5
Example 10.14

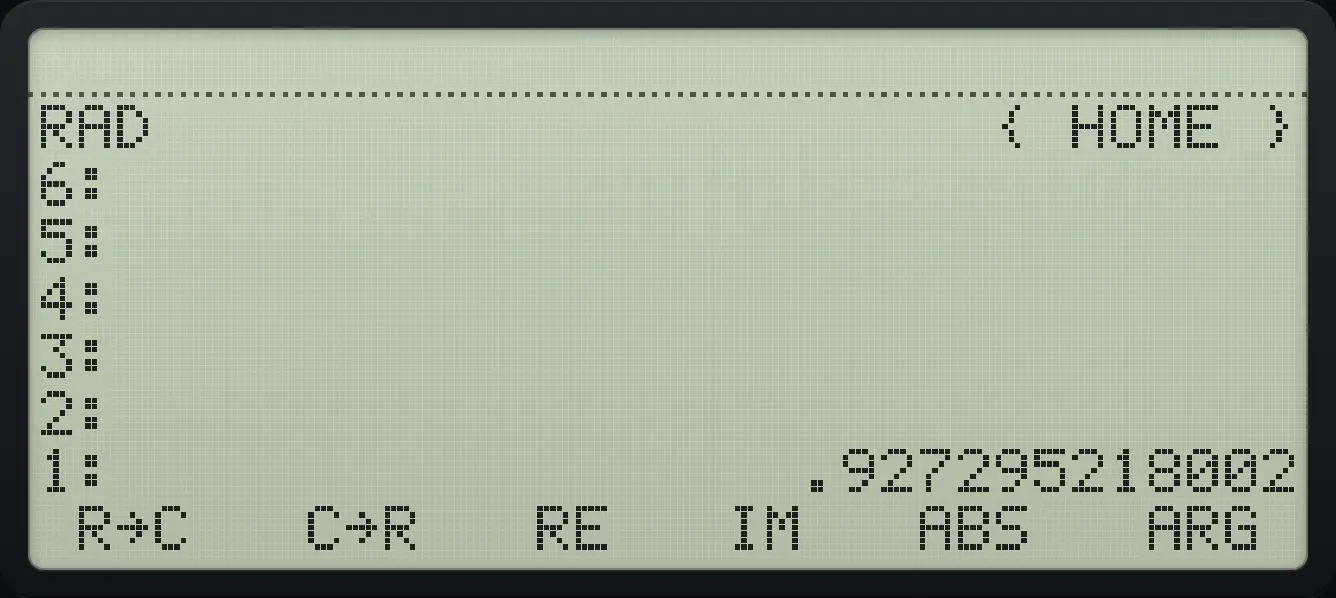

Angle

  1. ARG is the sixth key (radians by default).

    3ENTER4◀R→C1▶CPLXAPPSF6
Result of the example "Angle" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1:                  .927295218002 /  R→C   C→R   RE   IM   ABS   ARG .
You should see1: .927295218002

10.4Show complex numbers in polar form#

In POLAR mode a complex number is shown as (r,∠angle) with the angle in the current unit, and the status line shows R∠Z. The object is the same; only the display changes.

Example 10.15

Polar display

  1. Make 3 + 4i and choose POLAR.

    3ENTER4◀R→C1MODENXTF3

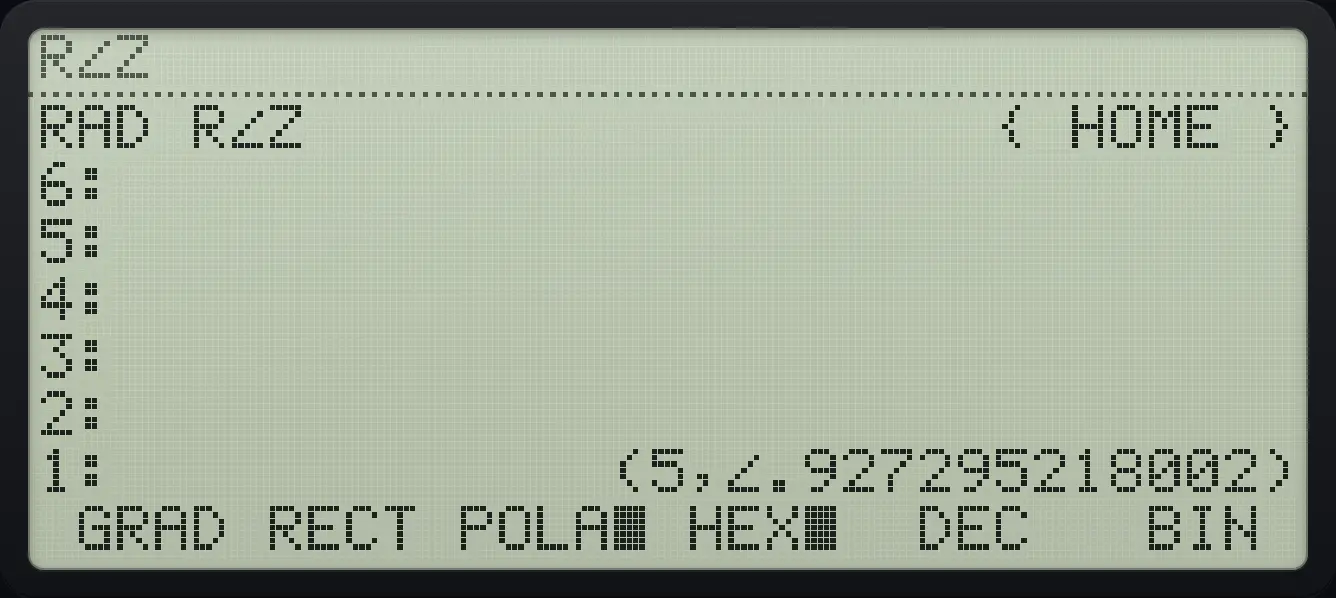

Result of the example "Polar display" The display shows: RAD R∠Z                  { HOME } / 6: / 5: / 4: / 3: / 2: / 1:             (5,∠.927295218002) /  GRAD RECT POLA■ HEX■  DEC   BIN .
You should see(5,∠.927295218002)

10.5Vectors and matrices of complex numbers#

Put complex numbers inside the brackets of a vector or matrix: [ (1,2) (3,4) ]. If any entry is complex the whole array is a complex array (TYPE 4) and its real entries show as (x,0). Add, subtract and multiply them like real arrays (a real array or a real or complex number can be the other argument), and use DET, INV, ÷ (solve), a whole-number power (0 gives the identity matrix, a negative power the inverse) and SQ for square matrices, CROSS and DOT for vectors, TRN (which also conjugates), CONJ, RE, IM, ABS, NEG, GET, PUT, SIZE, →ARRY and ARRY→. A number divided by a square matrix is the number times its inverse. R→C joins two real arrays into one complex array and C→R splits it.

Example 10.16

Type a complex vector

  1. Left shift 9, then right shift 8 for each complex entry; the right arrow steps out of the parentheses.

    ◀[ ]9▶( )81▶,92▶SPC▶( )83▶,94ENTER
Result of the example "Type a complex vector" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1:                [ (1,2) (3,4) ].
You should see[ (1,2) (3,4) ]
Example 10.17

Add a real vector

  1. Type [ 1 1 ] and add.

    ◀[ ]9▶( )81▶,92▶SPC▶( )83▶,94ENTER◀[ ]91SPC1ENTER+
Result of the example "Add a real vector" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1:                [ (2,2) (4,4) ].
You should see[ (2,2) (4,4) ]
Example 10.18

Multiply by i

  1. Push i (left shift 2) and multiply.

    ◀[ ]9▶( )81▶,92▶SPC▶( )83▶,94ENTER◀i2×
Result of the example "Multiply by i" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2: / 1:              [ (-2,1) (-4,3) ].
You should see[ (-2,1) (-4,3) ]
Example 10.19

Split into real and imaginary parts

  1. Press right shift 1 (C→R).

    ◀[ ]9▶( )81▶,92▶SPC▶( )83▶,94ENTER▶C→R1
Result of the example "Split into real and imaginary parts" The display shows: RAD                      { HOME } / 6: / 5: / 4: / 3: / 2:                        [ 1 3 ] / 1:                        [ 2 4 ].
You should see2: [ 1 3 ] 1: [ 2 4 ]
